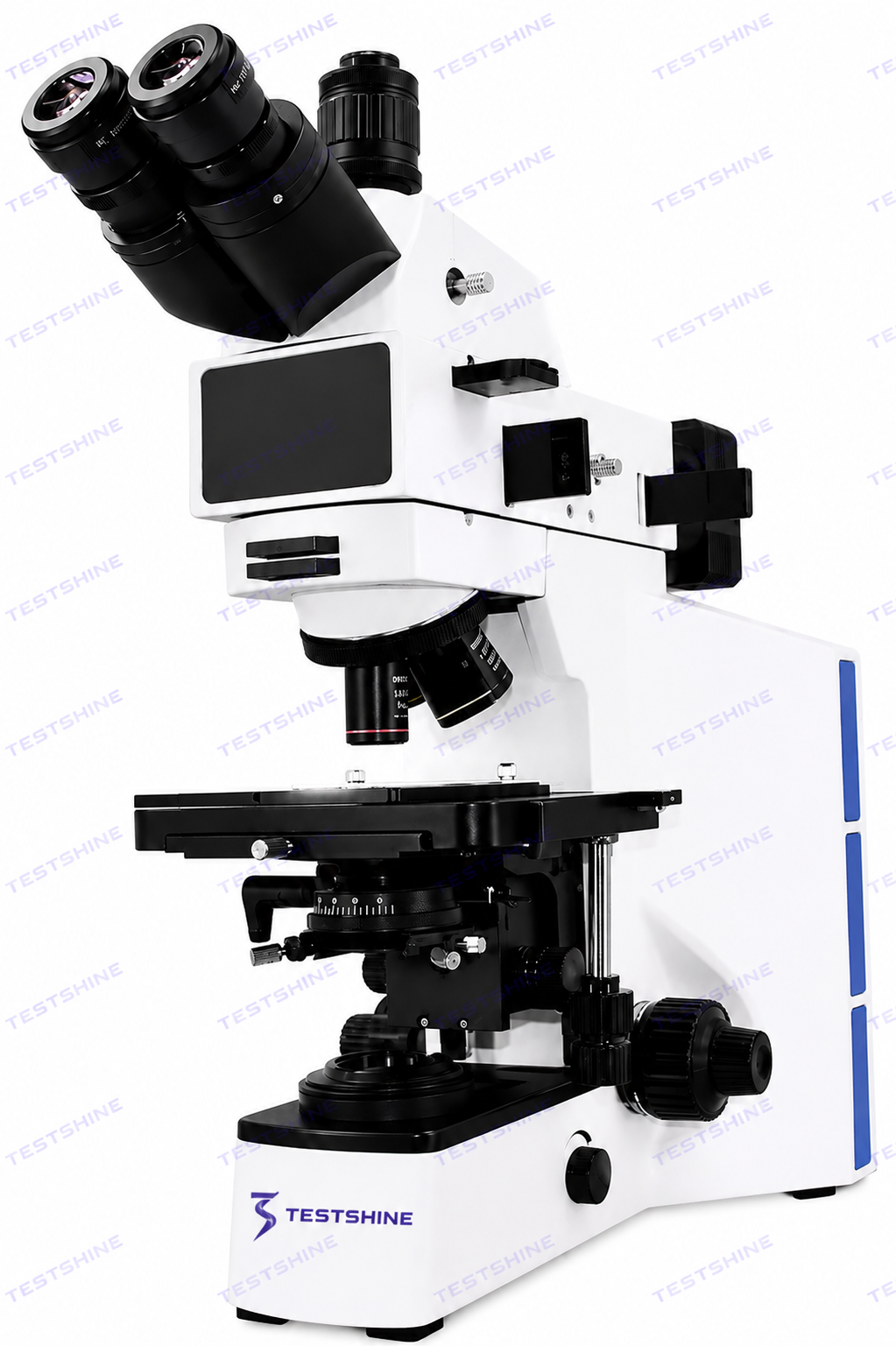

Infinity Metallurgical Microscope
Infinity-Corrected Metallurgical Microscope for Bright Field & Polarizing Observation
1 / 2Infinity Metallurgical Microscope
The TS-IMM40 is an infinity-corrected metallurgical microscope engineered for bright field and polarizing observation of metals, alloys, and other opaque materials. Built around a plan achromatic optical system, it delivers consistently sharp, high-contrast imaging across the full magnification range, making it a dependable platform for microstructural analysis in metallurgical, materials-testing, and quality-control laboratories.
Key Specifications
Observation
Bright field, polarizing
Optical System
Infinity plan achromatic optical system
Objective
5X, 10X, 20X, 50X
Parfocal Distance
45mm
Global Shipping
50+ countries
2-Year Warranty
Parts & service
Expert Support
Dedicated team
Have a question about this instrument?
Talk to an expertProduct Information
The TS-IMM40 is an infinity-corrected metallurgical microscope engineered for bright field and polarizing observation of metals, alloys, and other opaque materials. Built around a plan achromatic optical system, it delivers consistently sharp, high-contrast imaging across the full magnification range, making it a dependable platform for microstructural analysis in metallurgical, materials-testing, and quality-control laboratories.
Key Features
An upgraded, high cost-performance microscope built around an excellent optical system.
Parfocal design across objectives simplifies magnification changes and speeds up routine observation.
A large numerical aperture delivers higher brightness and improved light transmittance for clearer imaging.
The integrated polarizer and analyzer enable full polarized-light observation.
Technical Parameters
| Parameter | Specification |
| Model | TS-IMM40 |
| Observation | Bright field, polarizing. |
| Optical system | Infinity plan achromatic optical system |
| View tube | Trinocular, 30° inclined, 360° rotating. IPD adjustment: 54mm~75mm. Diopter adjustment: ± 5 diopters. Splitting ratio: 100:0 or 50:50. |
| Eyepiece | High eye level WF PL 10X(Φ22mm). |
| Objective | Infinity plan achromatic long working distance metallurgical objective: Standard: 5X, 10X, 20X, 50X |
| Parfocal distance | 45mm |
| Nosepiece | Reversed Quintuple (5-position) |
| Stage | Double layer mechanical stage: 175*145mm. Moving range: 76mm*42mm, accuracy: 0.1mm. Right hand gang control for X and Y direction. Reflecting metal stage plate/Reflecting and transmission glass stage plate. |
| Focusing system | Coaxial coarse and fine focusing system. Tightness and height limitation of coarse regulation are adjustable. Fine adjustment accuracy: 0.001mm. Coarse adjustment: 28mm. With focusing stopper to protect the objective and specimen. |
| Illumination | Transmitted & reflected illumination, the two illuminations can work at the same time. Reflected illumination: 5W LED, with presetting center and adjustable field stop and aperture stop. Transmitted illumination: 5W warm light LED, with presetting center and adjustable field stop and aperture stop. |
| Condensor | Transmission condensor N.A 0.9, with aperture iris diaphragm. |
| Polarizing kit | Polarizer and analyzer. |
| Camera adapter | 1X C-Mount. |
| Digital camera | 6.3MP/Max: 3072*2048，USB3.0.Function：adding photo. Record video. Measurement. Focus stacking. Image stitching. |
| Power supply | AC90V-240V, 50/60Hz. |
Applications
Metallurgical and materials science laboratories examining metals, alloys, and other opaque specimens
Quality control and inspection of metal surfaces, cross-sections, welds, and coatings
Materials testing and failure analysis in manufacturing and industrial settings
Research and development facilities studying microstructure, grain patterns, and inclusions
