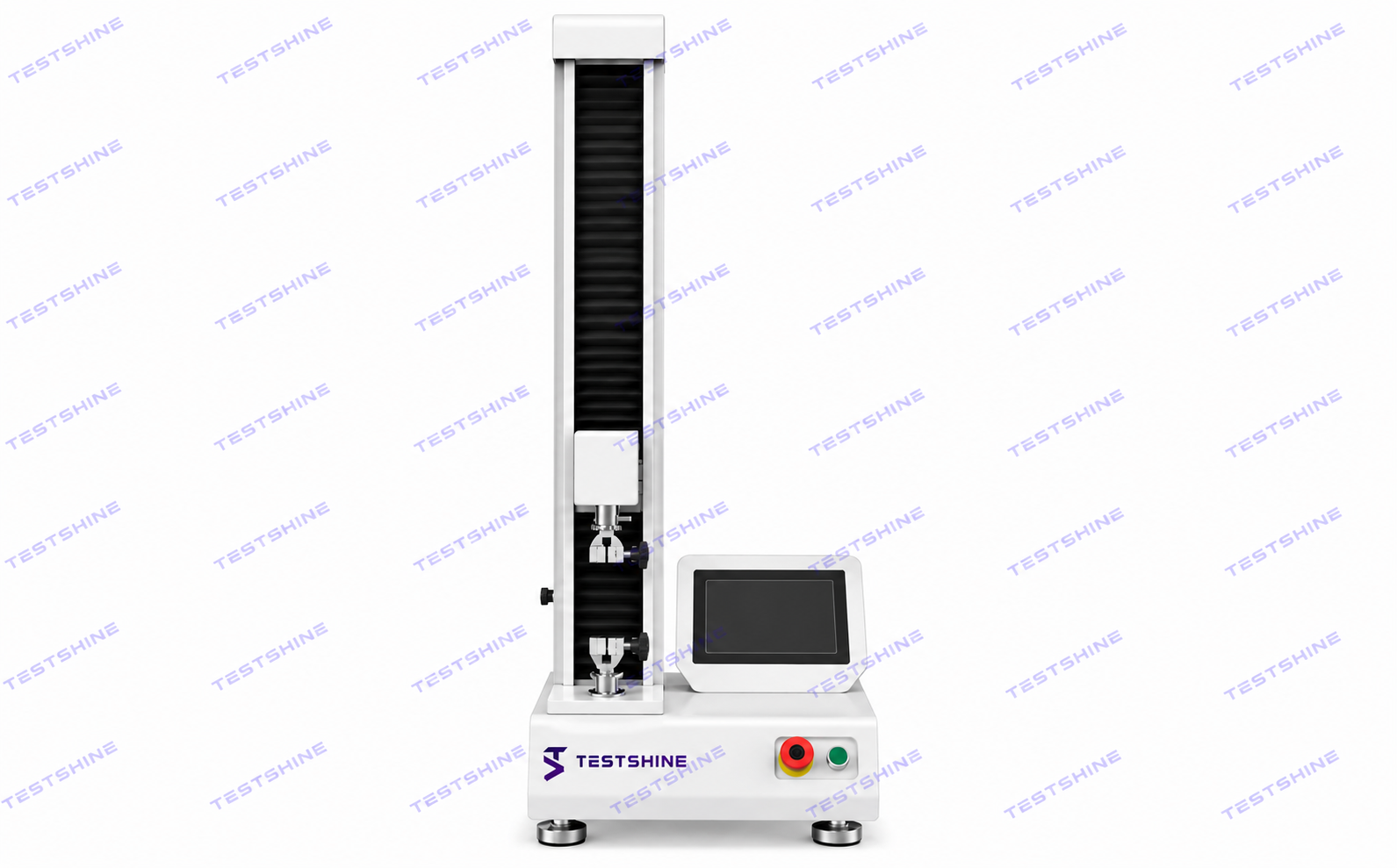

Electronic Tensile Tester
Multi-functional Electronic Tensile Tester for Material and Packaging Testing
1 / 2Electronic Tensile Tester
The TS-ET2 is a multi-functional single-column electronic tensile testing machine designed for accurate mechanical property testing of a wide range of metallic and non-metallic materials.
Key Specifications
Test Force Range
0 – 500 N
Test Accuracy
±0.5% FS
Force Resolution
0.001 N
Test Speed
0 – 500 mm/min
Global Shipping
50+ countries
2-Year Warranty
Parts & service
Expert Support
Dedicated team
Have a question about this instrument?
Talk to an expertProduct Information
The TS-ET2 multi-functional single-column electronic tensile testing machine is a mechanical property testing instrument developed to meet the requirements of GB, JIS, ASTM, DIN and other applicable standards, as well as the practical demands of the testing laboratory. The unit is built around a high-precision force sensor that keeps force measurement accuracy within ±0.5% FS, and it uses a high-precision ball screw for loading, which keeps the load application smooth and steady while extending the service life of the machine. Dedicated testing software enables fully automatic operation, and the color touchscreen displays test curves in real time, so operators can review recorded data and generate test reports directly from the instrument, keeping the testing workflow efficient and straightforward. The measurement and control unit is available in either a built-in or an external configuration, and the instrument incorporates a complete set of safety features, including limit protection, overload protection, and an emergency stop function.
The TS-ET2 is suited to tensile, peeling, heat-sealing, tearing, puncturing, compression, bending, shearing and other tests on a wide range of metallic and non-metallic materials, from which parameters such as breaking strength and elastic modulus can be calculated. It also supports testing needs within the medical industry, making it a valuable instrument for physical property testing, teaching and research, and quality control applications.
Key Features
Rich Functional Configuration (Customized Services Available)
- Basic experiments — stretching, puncturing, peeling, shearing, bending, tearing, heat sealing, mobility and other tests (extensometers can be equipped).
- Pharmaceutical package material (metal) tests — aluminum cap opening force, plastic removal force, tearing force, tearing force of tearing sheet, etc.
- Pharmaceutical package material (plastic) tests — tab opening force, puncture dynamic retention force, puncture force, etc.
- Medicine package material (pre-filling type) tests — needle tip puncture force, piston activity, body tightness, rubber pad force, needle cap pull-out force, needle-needle seat connection force, etc.
Technical Parameters
| Parameter | Specification |
| Test force range | 0~500 N，( optional 0~2000 N) |
| Test accuracy | Within ±0.5 %FS of the displayed value |
| Force resolution | 0.001N |
| Displacement resolution | 0.001mm |
| Test speed | 0~500 mm/min（infinitely variable speeds） |
| Travel distance range | 750mm(can be customized for 1000 mm) |
| Test width range | 30 mm（can be customized for 50 mm and 60 mm） |
| Displacement accuracy | Within ±0.5% of the displayed value |
| Instrument size | L×W×H：460 mm×525 mm×1430 mm |
| Weight | 86 kg |
| Power supply | 220 V，50 Hz/500W |
Applications
Plastic film: It is suitable for tensile, peeling, heat sealing, tearing, puncturing, compression, bending and other performance tests of plastic films, composite materials, flexible packaging materials, tapes and other products.
Composite film bag: It is suitable for tensile, peeling, heat sealing, tearing, puncture, compression, bending and other performance tests of composite films, co-extruded films, composite bags, retort bags, aluminum-plastic composite bags and other products.
Paper: It is suitable for tensile strength, peeling, deformation, tearing, heat sealing, bonding and other performance tests of paper, kraft paper, facial tissue, toilet paper and other products.
Medical Patches: It is suitable for tensile strength, peeling, deformation, tearing, heat sealing, bonding and other performance tests of medical cold compress, plaster and other products.
