Electronic Tensile Tester
Single-Column Electronic Tensile Tester for Material and Packaging Testing
1 / 2Electronic Tensile Tester

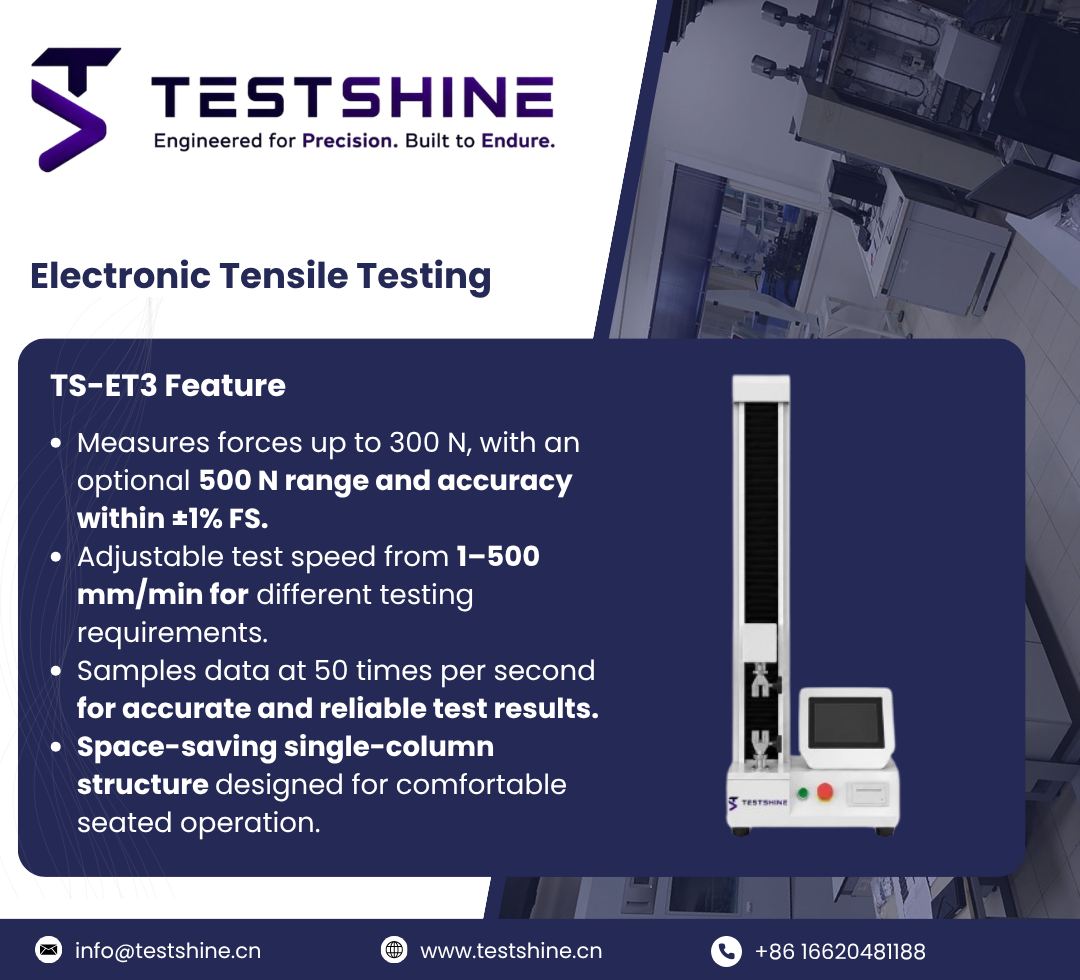

The TS-ET3 is a precision single-column electronic tensile tester designed for accurate mechanical performance testing of plastic films, composite films, flexible materials, rubber sheets, adhesive tapes, adhesives, paper, non-woven fabrics, and other materials.
Key Specifications
Force Range
0 – 300 N
Test Speed
1 – 500 mm/min
Force Accuracy
±1% FS
Sampling Rate
50 times/s
Global Shipping
50+ countries
2-Year Warranty
Parts & service
Expert Support
Dedicated team
Have a question about this instrument?
Talk to an expertProduct Information
The TS-ET3 single-column electronic tensile tester is a precision mechanical performance testing instrument developed to satisfy the requirements of GB, ASTM and other recognized standards, as well as evolving market demands. Built around high-precision sensors, the instrument delivers accurate force measurement, stable and consistent loading, and a long operating service life. An LCD display, paired with dedicated testing software, presents real-time test curve data and retrievable test reports, making the testing process both convenient and efficient. The instrument runs fully automatically and governs the measurement unit throughout, while comprehensive safety functions - including limit protection, overload protection, and an emergency stop - protect both the operator and the equipment.
The tester is well suited to mechanical property evaluations such as tensile, peeling and heat-sealing tests on a wide variety of materials, including plastic films, paper-aluminum-plastic composite films, flexible elastic materials, rubber sheets, adhesive tapes, adhesives, paper and non-woven fabrics. It satisfies the testing-technology requirements set by national technical supervision authorities and is widely applied across quality inspection, pharmaceutical inspection, scientific research, packaging, film manufacturing, food, pharmaceuticals, daily chemicals and other industries.
Key Features
Elegant, Space-Saving Body Design
The desktop, single-column structure is compact and refined, allowing comfortable, natural operation from a seated position. A built-in thermal printer is provided for printing test reports directly from the instrument.
Flexible, Efficient Testing Capability
The instrument performs tensile, peeling, heat-sealing, tearing and other tests, with multi-parameter variable settings for width, speed, thickness and clamping distance. Its high sampling rate of 50 times per second ensures accurate, reliable test data.
Safe, High-End Mechanical Construction
Three-level safety protection is built in, and an emergency stop switch further ensures operator safety. Imported core components deliver high precision and a long service life, while the LCD screen displays test data and working status at all times.
Technical Parameters
| Parameter | Specification |
| Force Measuring Range | 0~300 N (0~500 N optional) |
| Force Measurement Accuracy | Indication value is within ±1%FS (Level 1) |
| Test Speed | 1-500 mm/min |
| Displacement Accuracy | Indication value is within ±1% |
| Effective Test Width | 30 mm (50 mm can be customized) |
| Effective Test Itinerary | 750 mm（1000mm customized） |
| Size | L×W×H：600 mm×500 mm×1300 mm |
| Weight | 65 kg |
| Power Supply | AC 220 V，50 Hz |
| Power | 300 W |
Applications
Plastic Film
Suited to tensile, peel, heat-seal, tear, puncture, compression, bending and other performance tests on plastic films, composite materials, flexible packaging materials, tapes and related products.
Composite Film Bag
Suited to tensile, peel, heat-seal, tear, puncture, compression, bending and other performance tests on composite films, co-extruded films, composite bags, retort pouches, aluminum-plastic composite bags and related products.
Paper
Suited to tensile strength, peel, deformation, tear, heat-seal, bonding and other performance tests on paper, kraft paper, facial tissue, toilet paper and related products.
Medical Patches
Suited to tensile strength, peel, deformation, tear, heat-seal, bonding and other performance tests on medical cold compresses, plasters and related products.
