Heat Seal Tester
Advanced Multi-Station Heat Seal Testing Instrument
1 / 3Heat Seal Tester

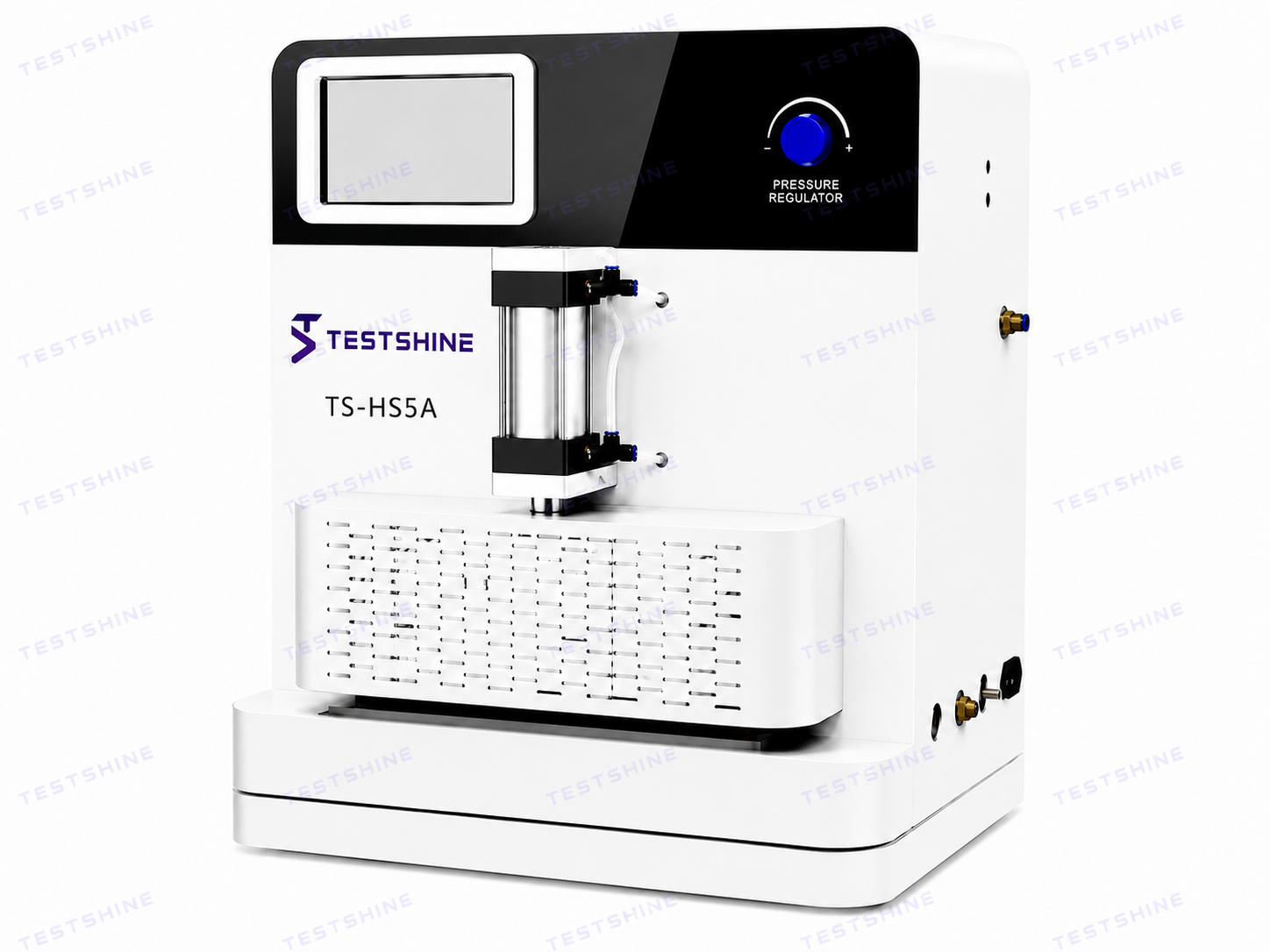

The TS-HS5A Heat Seal Tester precisely evaluates the heat sealing performance of flexible packaging materials by accurately controlling sealing temperature, pressure, and dwell time, enabling reliable seal optimization for research, quality control, and production applications.
Key Specifications
Temperature Range
RT – 250°C
Temperature Accuracy
±0.5°C
Pressure Range
0.1 – 0.8 MPa
Heating Zones
5 Upper + 1 Lower Bar
Global Shipping
50+ countries
2-Year Warranty
Parts & service
Expert Support
Dedicated team
Have a question about this instrument?
Talk to an expertProduct Introduction

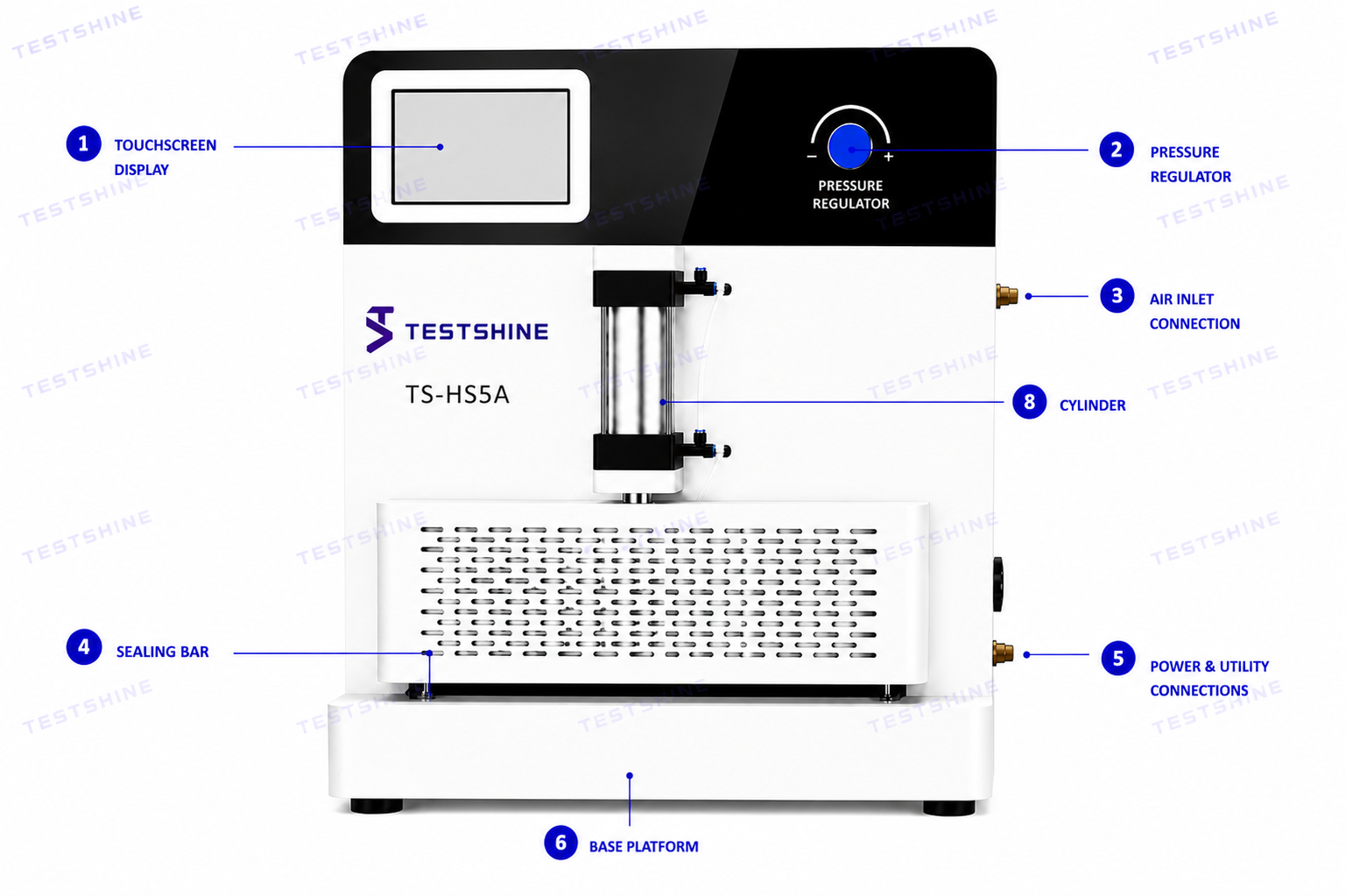

The TS-HS5A Heat Seal Tester is a precision laboratory instrument engineered to evaluate the temperature, pressure, and dwell time required to produce a reliable heat seal on flexible films and packaging laminates. By reproducing real-world sealing conditions under tightly controlled parameters, the instrument allows manufacturers and testing laboratories to determine the optimal sealing window for a given material before it moves into full-scale production.
Because seal integrity has a direct bearing on shelf life, tamper evidence, and product safety, the TS-HS5A has become a standard piece of equipment across a wide range of industries. It is routinely used by quality inspection organizations, drug control and regulatory institutions, packaging and film converters, food processing companies, pharmaceutical manufacturers, and producers in the personal care sector to confirm that packaging materials meet the sealing performance demanded by their end use.
Key Features
- Five-point heat sealing capability, allowing up to six independent temperature settings to be configured simultaneously across the lower bar and five upper bars — ideal for multi-zone seal profiling.
- Independent temperature control and setting for both the upper and lower heat seal bars, enabling asymmetric sealing trials that mirror real production conditions.
- Digital P.I.D. temperature control delivers tighter, more consistent temperature regulation than conventional controllers, and the temperature sensor is designed for straightforward calibration.
Technical Parameters
| Temperature Range | Room temperature ~ 250°C |
| Temperature Precision | ± 0.5°C |
| Seal Time Range | 0.1s ~ 99h 59min 59.9s |
| Pressure Range | 0.1 ~ 0.8 MPa |
| Heat Seal Area | Upper bar 35×10 mm × 5 sections; lower bar has silicone pad as buffer (customization available) |
| Heat Seal Method | Two ways: automatic or manual, external air cylinder |
| Power Supply | AC 220V 50Hz |
| Instrument Size | 500(L) × 330(B) × 570(H) mm |
| Power | 1200W |
| Weight | 35 KG |
Applications
Quality Assurance & Incoming Material Inspection
Quality assurance and incoming-material inspection for packaging converters.
Regulatory & Drug-Control Laboratory Testing
Regulatory and drug-control laboratory testing of pharmaceutical packaging.
Research & Development
Research and development of new film, laminate, and pouch structures.
Food & Beverage Packaging
Seal-strength qualification for food and beverage packaging.
