Coulometric Sensor Method Oxygen Permeability Analyzer
High-Precision Oxygen Transmission Rate (OTR) Analyzer

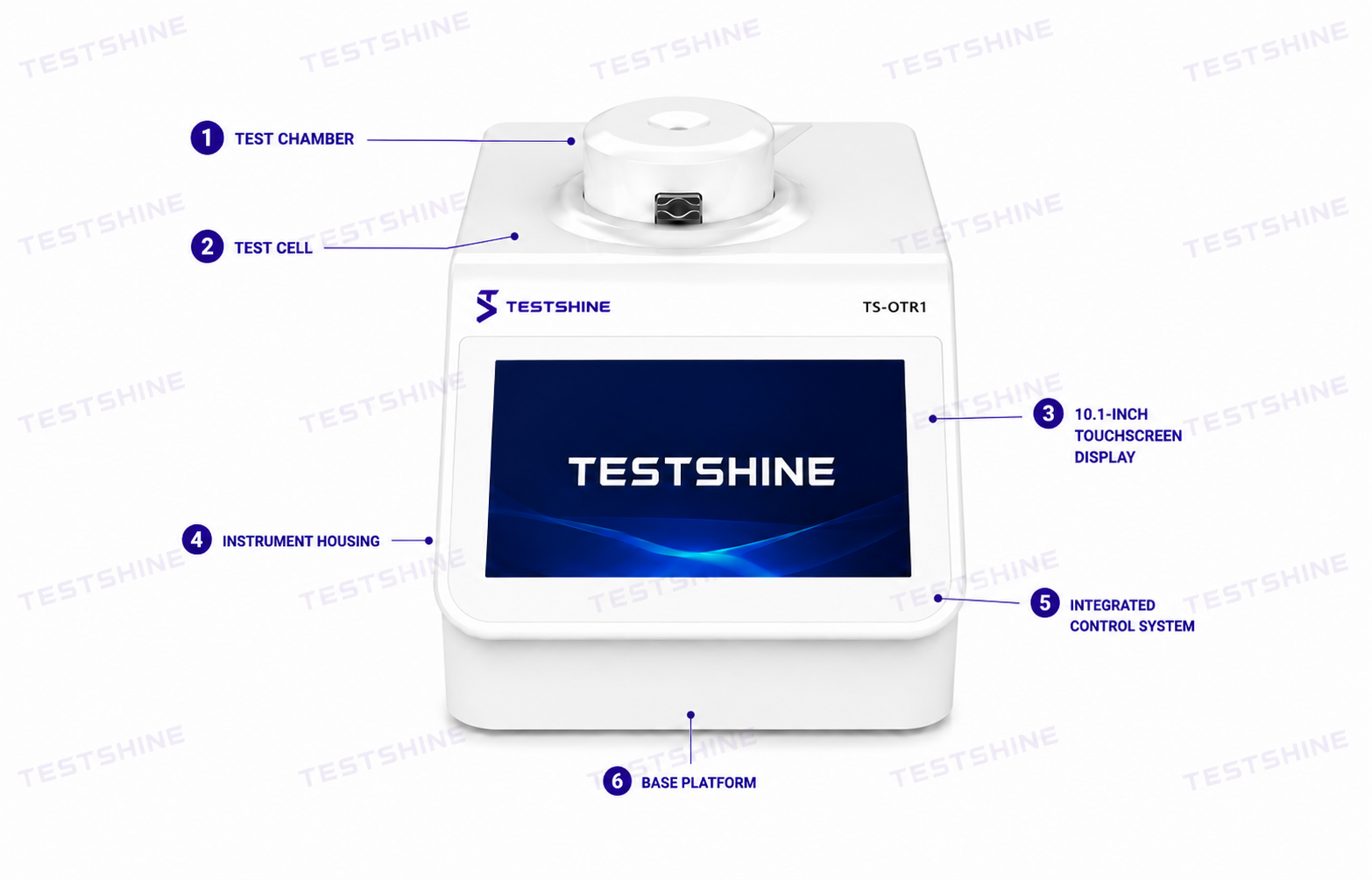

1 / 3Coulometric Sensor Method Oxygen Permeability Analyzer
The TS-OTR1 Oxygen Permeability Analyzer provides precise oxygen transmission rate (OTR) testing for films, packaging, and barrier materials using advanced coulometric sensor technology.
Key Specifications
Measurement Range
0.01 – 1000 cm³/(m²·24h·0.1MPa)
Resolution
0.0001 cm³/(m²·24h·0.1MPa)
Temperature Control
15°C – 45°C (±0.1°C)
Humidity Control
0–100% RH (±2% RH)
Global Shipping
50+ countries
2-Year Warranty
Parts & service
Expert Support
Dedicated team
Have a question about this instrument?
Talk to an expertProduct Introduction
TS-OTR1 Coulometric Sensor Method Oxygen Permeability Analyzer is a high-precision laboratory instrument designed to accurately determine the oxygen transmission rate (OTR) of films, sheets, flexible packaging, pharmaceutical packaging, and high-barrier materials. Utilizing the advanced coulometric oxygen sensor method, the instrument provides reliable and repeatable permeability measurements for quality control, product development, and scientific research.
Engineered with an imported high-sensitivity oxygen sensor, precise environmental control, and intelligent automation, the TS-OTR1 delivers exceptional measurement accuracy across materials with high, medium, and low oxygen barrier properties. Its stable testing conditions and advanced data processing capabilities ensure consistent analytical performance throughout every test.
The analyzer is widely used for evaluating the oxygen barrier performance of plastic films, composite laminates, paper materials, pharmaceutical packaging, medical products, food packaging, and industrial barrier materials, helping manufacturers improve packaging quality, extend product shelf life, and optimize material selection.
Key Features
- High-precision imported coulometric oxygen sensor ensures exceptional sensitivity and long-term measurement stability.
- Ultra-low resolution of 0.0001 cm³/(m²·24h·0.1MPa) enables accurate testing of high-barrier packaging materials.
- Automatic temperature and humidity control provide stable environmental conditions for highly repeatable test results.
- Intelligent touchscreen interface supports real-time monitoring, automated testing, and comprehensive data analysis.
- Suitable for evaluating films, sheets, paper, pharmaceutical packaging, food packaging, and barrier materials.
Technical Parameters
| Instrument Type | Oxygen Permeability Analyzer (TS-OTR1) |
| Test Method | Coulometric Oxygen Sensor Method |
| Measurement Range | 0.01 – 1000 cm³/(m²·24h·0.1MPa) |
| Resolution | 0.0001 cm³/(m²·24h·0.1MPa) |
| Repeatability | ±0.01 cm³/(m²·24h·0.1MPa) or 2% |
| Temperature Range | 15°C – 45°C |
| Temperature Accuracy | ±0.1°C |
| Humidity Range | 0% RH, 5–90% RH, 100% RH |
| Humidity Accuracy | ±2% RH |
| Effective Test Area | 50.24 cm² |
| Sample Size | Φ100 mm |
| Maximum Sample Thickness | ≤3 mm |
| Number of Test Stations | 1 |
| Power Supply | AC 220 V, 50 Hz |
| Power Consumption | 450 W |
Applications
Flexible Packaging & Plastic Films
Measures oxygen transmission rates of plastic films, multilayer laminates, metallized films, biodegradable materials, and flexible packaging structures to optimize barrier performance and extend product shelf life.
Pharmaceutical & Medical Packaging
Evaluates oxygen barrier properties of blister packs, medical packaging, pharmaceutical films, and healthcare materials to ensure product stability, regulatory compliance, and long-term protection.
Paper, Composite & Barrier Materials
Analyzes coated paper, paperboard laminates, composite structures, and specialty barrier materials for packaging development, quality assurance, and material comparison.
Containers & Packaging Research
Supports oxygen permeability testing of bottles, containers, cups, cartons, bags, and rigid packaging through optional accessories, enabling comprehensive barrier evaluation across various packaging applications.
