Intelligent Sealing Performance Tester
Intelligent Sealing Performance Tester for Packaging Materials
1 / 2Intelligent Sealing Performance Tester

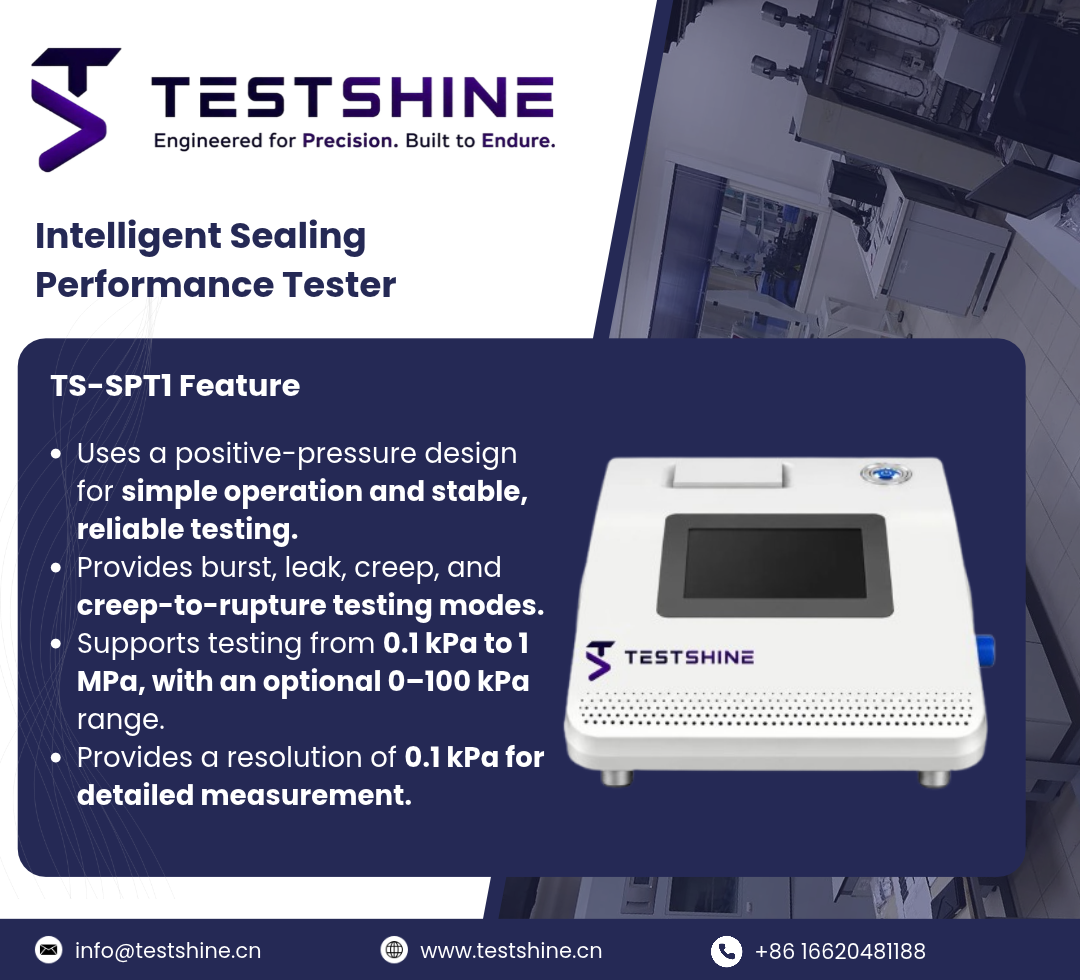

The TS-SPT1 Intelligent Sealing Performance Tester evaluates the sealing strength and integrity of packaging materials by pressurizing the sample.
Key Specifications
Test Range
0.1 kPa–1 MPa
Resolution
0.1 kPa
Test Accuracy
0.1 kPa
Testing Time
1–1000 s
Global Shipping
50+ countries
2-Year Warranty
Parts & service
Expert Support
Dedicated team
Have a question about this instrument?
Talk to an expertProduct Information
The TS-SPT1 Intelligent Sealing Performance Tester evaluates the sealing strength and integrity of packaging materials by pressurizing the sample. It is designed for food and pharmaceutical packaging, including soft packaging, semi-plastic packaging and full-plastic packaging.
Multiple test modes allow leak-tightness and package integrity to be assessed comprehensively. With its wide applicability, complete range of functions and accessories, the instrument complies with applicable ASTM, ISO and GB standards.
Key Features
- Positive-pressure design principle for simple operation and stable, reliable performance
- Dual test methods: with expansion inhibition and without expansion inhibition
- Multiple test modes to choose from: rupture test, creep test and creep-to-rupture test
- ‘One-key’ operation throughout the test process for intelligent, highly efficient testing
Technical Parameters
| Parameter | Specification |
| Test range | 0.1 Kpa~1 Mpa 0~100 kPa (optional) |
| Resolution | 0.1 Kpa |
| Test accuracy | 0.1 Kpa |
| Testing time | 1~1000 s |
| Test type | Burst, leak, creep, bubble method |
| Type of packaging | Soft package, semi-plastic package, all-plastic package |
| Air pressure | 0.5 Mpa~0.9 Mpa |
| Dimensions | 400 mm×415 mm×272 mm |
| Power supply | 220V 50Hz |
| Power | 150W |
| Weight | 10kg |
Applications
- Plastic composite bags
- Packaging hoses
- Various packaging bags and boxes
- Blister packs
