Smoothness Tester
Paper & Paperboard Smoothness Measurement (Bekk Method)

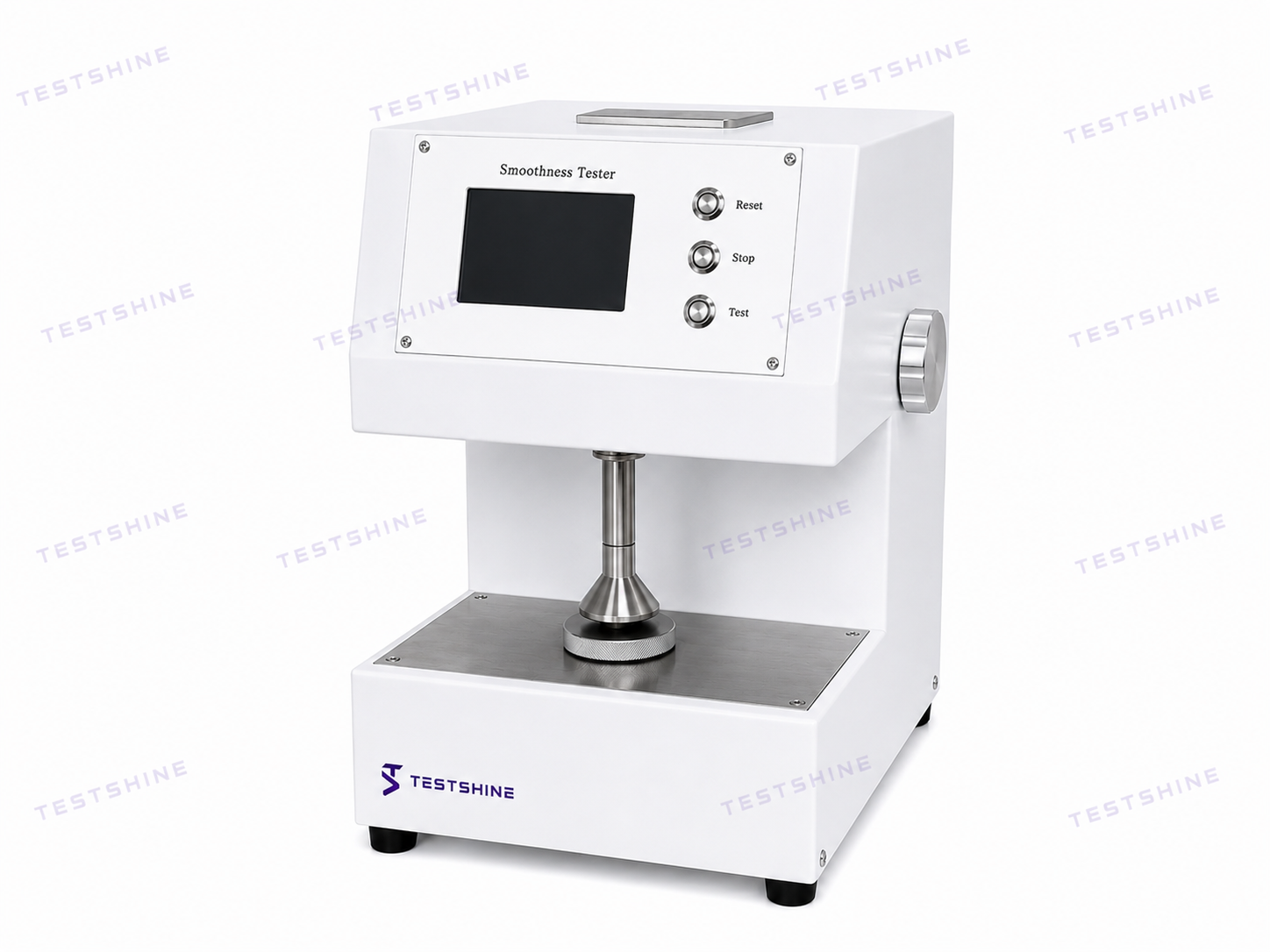

1 / 2Smoothness Tester
The TS-BR10K Smoothness Tester accurately measures the surface smoothness of paper and paperboard using the Bekk Method, delivering precise, repeatable results for quality control, product development, and laboratory testing.
Key Specifications
Test Method
Bekk Smoothness
Control System
Microprocessor Controlled
Display
Color Touchscreen LCD
Powers
AC110~240V
Global Shipping
50+ countries
2-Year Warranty
Parts & service
Expert Support
Dedicated team
Have a question about this instrument?
Talk to an expertProduct Introduction
The TS-BR10K Smoothness Tester is a microprocessor-controlled instrument for the determination of smoothness of paper and board according to the Bekk Method. It is designed to test the smoothness of paper or cardboard accurately and efficiently. According to the sample smoothness, the instrument provides three measurement gears, enabling quick and precise testing for a wide variety of paper and board samples.
Key Features
- Adopts imported high precision sensor and oil-free vacuum pump, providing low noise operation and high measurement accuracy.
- Equipped with imported electromagnetic valve and stainless steel vacuum chamber, offering excellent sealing performance and advanced sealing technology for more accurate and stable test results.
- High-resolution color touchscreen operating system with automatic testing, built-in micro printer output, measurement statistics, and a user-friendly human-computer interface for simple and convenient operation.
- Three selectable testing gears according to sample smoothness, allowing fast and accurate measurement of various paper and cardboard samples.
Technical Parameters
| Measure Range | (1~9999)s |
| Timing Accuracy | Timing1000s, error is less than ±1s |
| Vacuum Vessels | The large vacuum container: (380±1) ml; The small vacuum container: (38±1) ml |
| Contact Pressure | （100±2）kPa |
| Vacuum Accuracy | ±0.07kPa |
| Dimensions | 300 × 370 × 420 mm |
| Weight | About 37 kg |
| Power | AC110~240V |
Applications
Paper & Paperboard Manufacturing
Used for determining the smoothness of paper and paperboard to ensure consistent product quality during manufacturing and quality control.
Packaging & Printing Industry
Evaluates the surface smoothness of packaging materials and printing paper to optimize print quality, ink adhesion, and finishing performance.
Research Laboratories & Quality Inspection
Suitable for research institutes, testing laboratories, and quality inspection departments conducting smoothness testing in accordance with the Bekk Method.
