Product Information

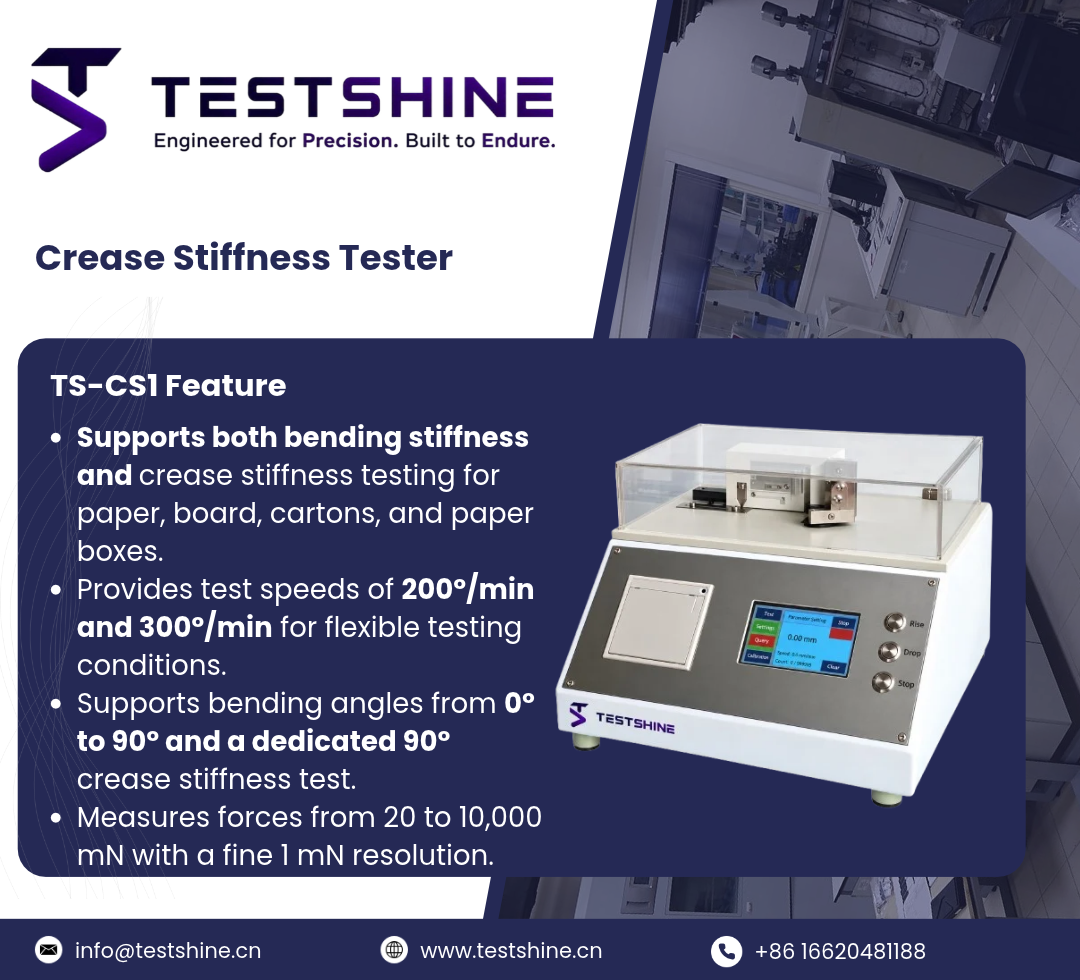

The TS-CS1 Crease Stiffness Tester is designed to measure the crease stiffness and bending stiffness, in the quiescent state, of a wide range of cardboard and paper boxes, such as cigarette packets. It evaluates how well a material resists bending. Testing can be carried out in two ways: by measuring the force required to bend a test piece to a predetermined angle, or by determining the bending stiffness, which is an elastic property of the material.

Key Features

1. High-precision load sensor: The measurement error is held within 1%, which is tighter than the ±2% standard requirement.

2. Dual clamps for multi-function testing: The instrument measures the bending stiffness of paper and board, as well as the stiffness of cardboard cartons and creasing.

3. Touch screen operation: The system features an aluminum control panel, and test records can be viewed or deleted at any time. When connected to a computer, test results are saved automatically, and compression resistance test curves can be displayed and saved.

4. Simple, traceable calibration: The instrument can be calibrated with a standard weight or a force measurement device, which makes calibration convenient for users. A third-party calibration body can also verify the calibration values using standard weight force.

Technical Parameters

Applications

• Paper and Board: Measurement of bending stiffness of paper and board in the quiescent state.

• Cardboard Cartons: Evaluation of bending and crease stiffness of cardboard cartons.

• Paper Boxes: Testing the crease stiffness and bending stiffness of paper boxes.

• Cigarette Packets: Evaluation of bending and crease stiffness of cigarette packets.
