Dielectric Constant Tester

Name: Dielectric Constant Tester
Brand: TestShine

Dielectric Constant & Dielectric Loss Measurement

1 / 4

TS-DC1

Dielectric Constant Tester

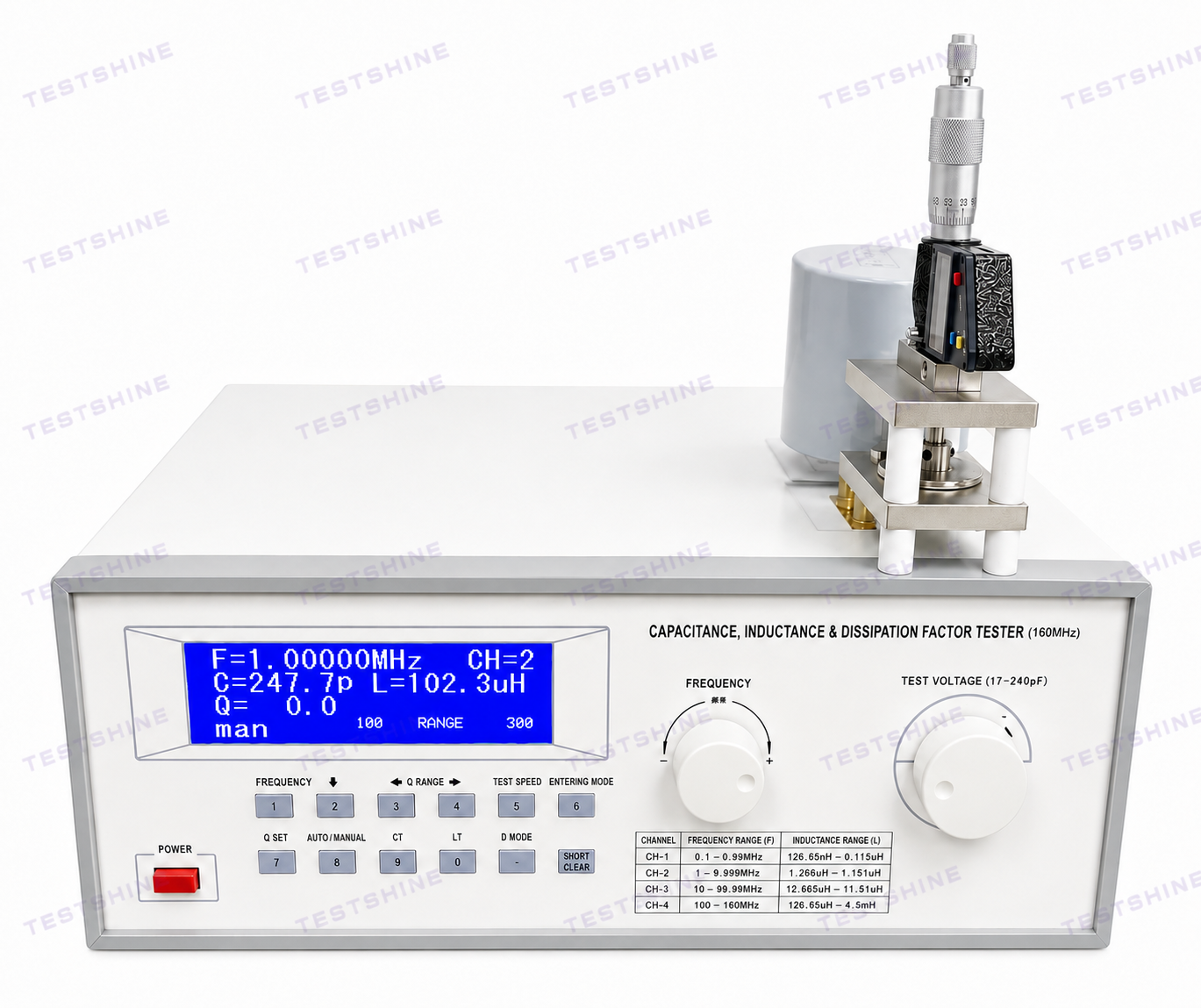

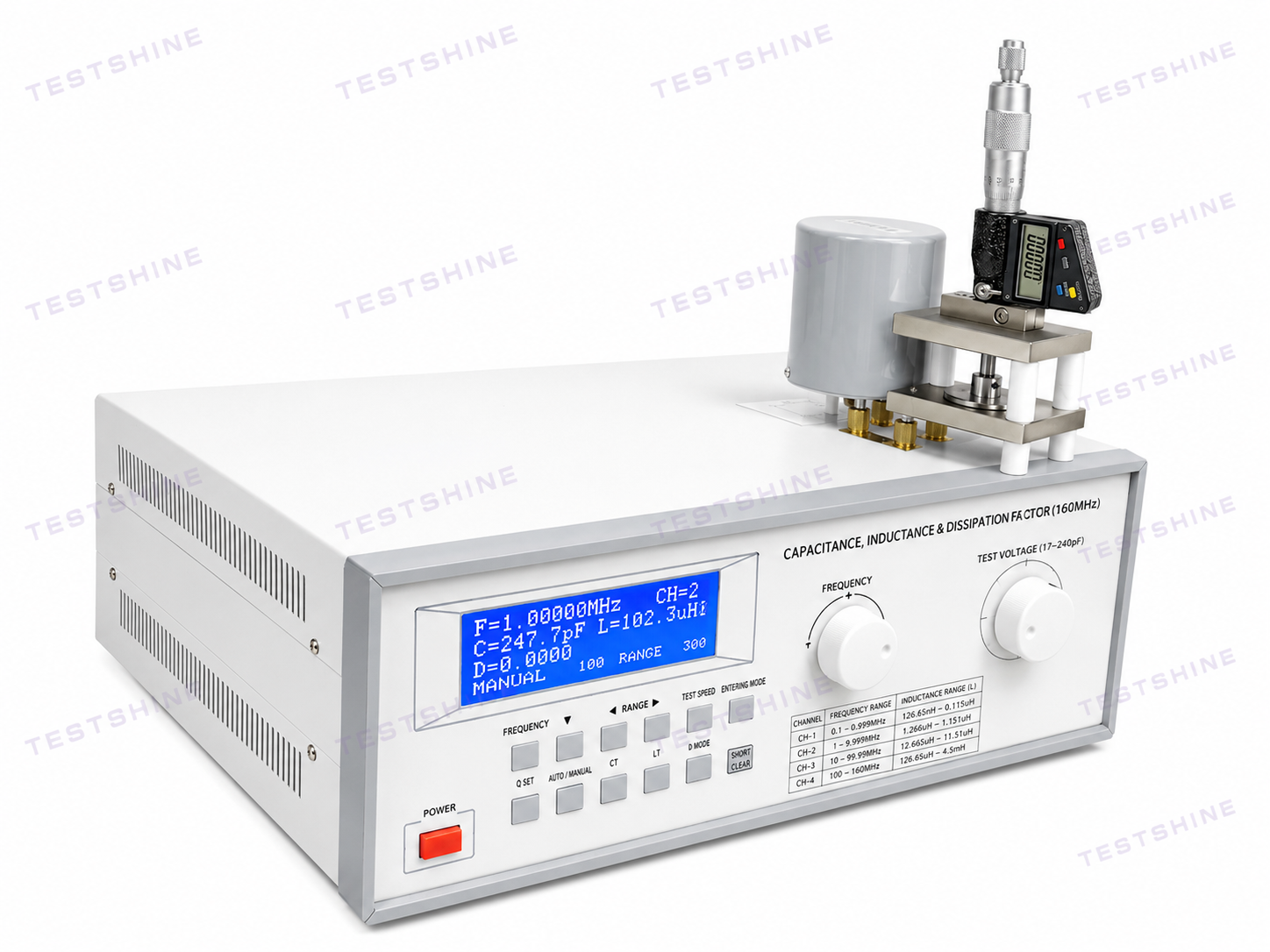

The TS-DC1 Dielectric Constant Tester is a precision instrument designed to measure the dielectric constant (ε) and dielectric loss tangent (tanδ) of insulating materials under high-frequency electric fields for quality control, research, and material characterization.

Key Specifications

Frequency Range

10 kHz – 70 MHz

Q Measurement Range

1 – 1000

Material Thickness

0.01 – 15 mm

Display

LCD

DielectricPermittivityLoss TangentElectrical Testing

Request a Quote Request Sample Testing

Global Shipping

50+ countries

2-Year Warranty

Parts & service

Expert Support

Dedicated team

Have a question about this instrument?

Talk to an expert

Product Introduction

The TS-DC1 is a precision test platform built to characterize the electrical insulation performance of dielectric materials at high frequency. Bringing together a dedicated test fixture, a control and measurement unit, automated data capture, and a matched set of inductors, the system gives engineers a single, self-contained solution for evaluating how a material behaves when subjected to a high-frequency electric field.

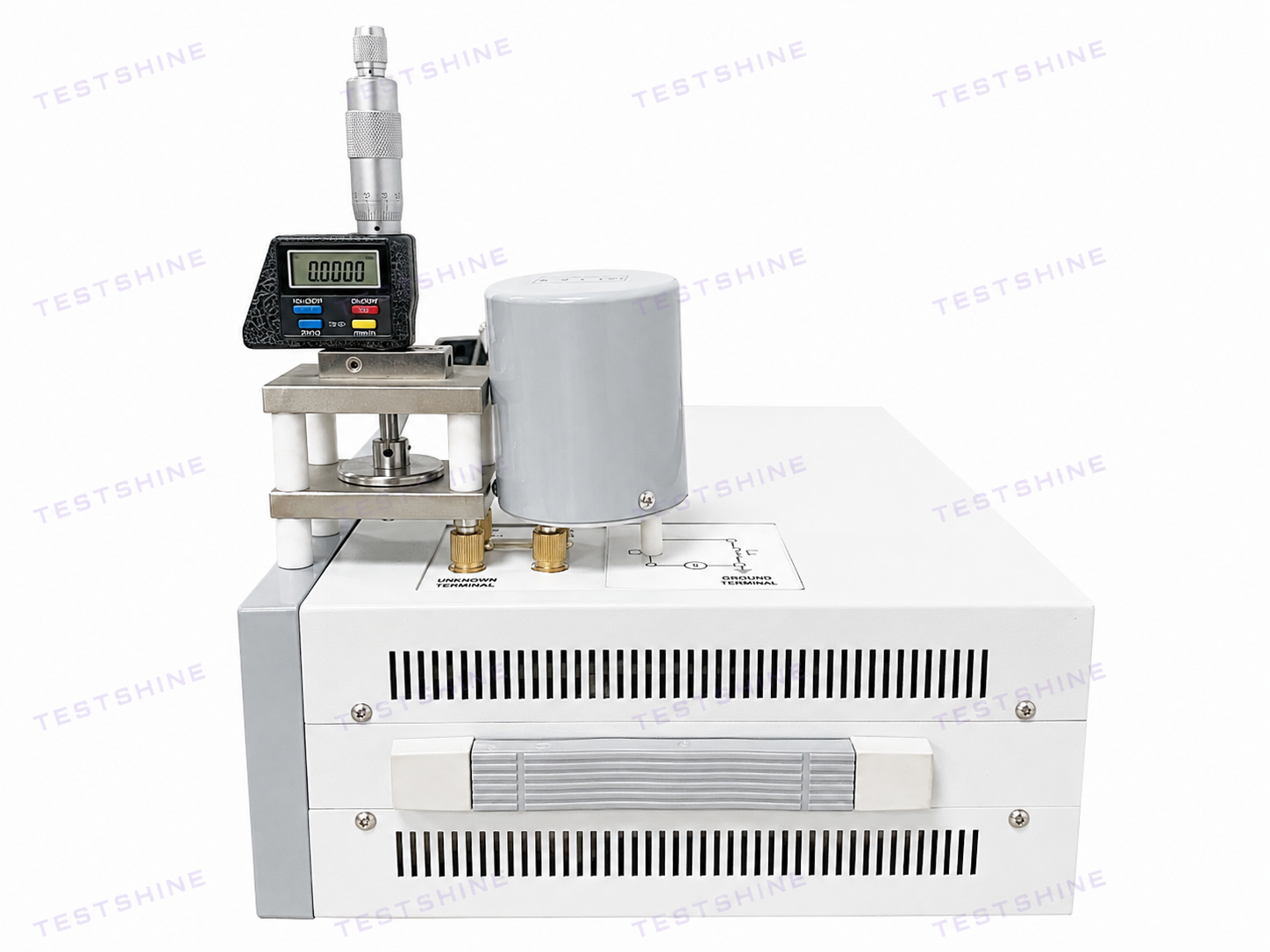

At the heart of the platform is a parallel-plate capacitor arrangement that holds the specimen in place while a Q-meter tracks the resulting resonance behaviour. By comparing the Q-value and thickness readings taken with and without the sample in the fixture, the TS-DC1 derives the dielectric loss tangent (tanδ) of the material under test. The dielectric constant (ε) is calculated from the same measurement cycle, so both parameters are produced together, automatically, in a single pass.

Because the method relies on direct physical measurement rather than modelled approximation, the TS-DC1 is well suited to quality control, incoming material inspection, and R&D characterization work where repeatable, standards-traceable results are essential.

Key Features

Fully automatic computation of dielectric constant (ε) and dielectric loss tangent (tanδ) in a single measurement cycle.
DDS digital synthesized signal source for stable, accurate frequency generation across a wide operating range.
Automatic and manual Q-range switching to suit different sample types and test conditions.
Automatic resonance point scanning, removing the need for manual tuning.

Technical Parameters

Signal Source Range (DDS Digital Synthesized Signal)	10 kHz – 70 MHz
Signal Source Frequency Coverage Ratio	7000:1
Signal Source Frequency Accuracy (6 significant digits)	3×10⁻⁵ ±1 digit
Q Measurement Range	1–1000, automatic/manual range switching
Q Resolution	4 significant digits, 0.1 resolution
Q Measurement Working Error	<5%
Inductance Measurement Range (4 significant digits, 0.1 nH resolution)	1 nH – 8.4 H, 0.1 nH resolution
Inductance Measurement Error	<5%
Tuning Capacitor	Main capacitor 30–550 pF
Direct Capacitance Measurement Range	1 pF ~ 2.5 μF
Tuning Capacitor Error & Resolution	±1 pF or <1%, 0.1 pF
Resonance Point Search	Automatic scanning
Qualified Q Value Preset Range	5–1000, with sound and light prompt
Q Range Switching	Automatic/manual
LCD Display Parameters	F, L, C, Q, Lt, Ct, Tg, etc.
Automatic Deduction of Residual Inductance & Test Lead Inductance	Supported
Direct Measurement & Display of Large Capacitance Value	Measurable up to 2.5 μF
Dielectric Loss Coefficient Accuracy	0.01% (1 part per ten thousand)
Dielectric Permittivity Accuracy	0.1% (1 part per thousand)
Testable Material Thickness	0.01–15 mm

Applicable Standards

The TS-DC1 is designed and calibrated with reference to the following national and international test standards, ensuring that results are consistent with recognised industry practice:

GB/T 1409-2006 — Test methods for permittivity and dielectric loss tangent of solid insulating materials at frequencies from 1 MHz to 1000 MHz
GB/T 1693-2007 — Test methods for rubber insulating materials
