Automatic Dropping-Point and Softening-Point Apparatus
Automatic HD Video Dropping-Point and Softening-Point Apparatus for Thermal Characterization of Tar, Asphalt, Paraffin, Resin, Fats, Lubricants, and Related Materials
1 / 2Automatic Dropping-Point and Softening-Point Apparatus
Automatic laboratory apparatus designed for precise dropping-point and softening-point determination, featuring dual-sample HD video detection, automated process recording, programmable heating rates, touchscreen operation, and comprehensive data storage and recall.
Key Specifications
Measuring Range
Room Temperature – 300°C / 360°C / 400°C
Digital Resolution
0.1°C
Heating Rate
0.1–20°C/min
Sample Capacity
2 Samples
Global Shipping
50+ countries
2-Year Warranty
Parts & service
Expert Support
Dedicated team
Have a question about this instrument?
Talk to an expertProduct Overview

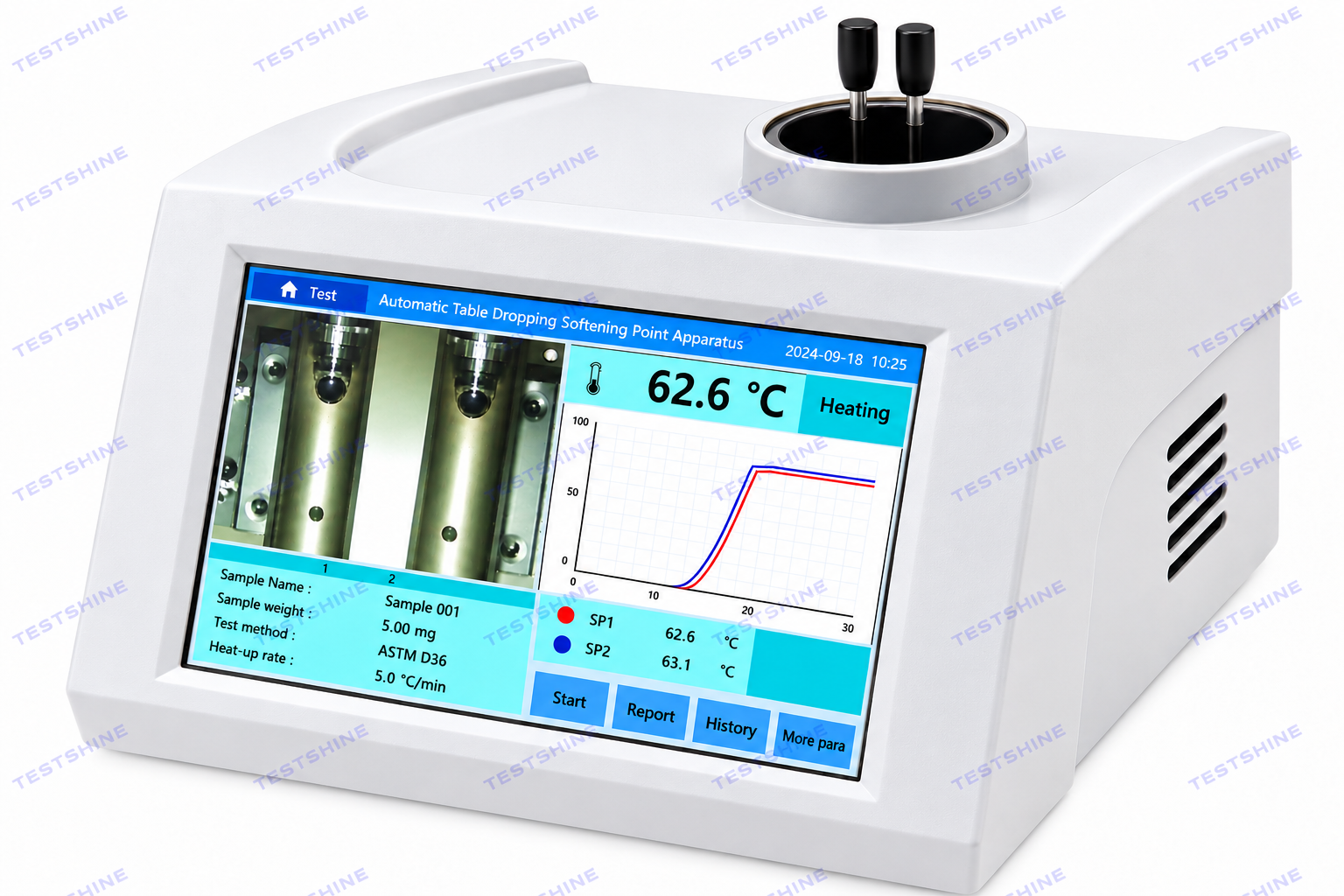

An automatic dropping-point and softening-point apparatus designed for precise thermal characterization of tar, asphalt, paraffin, resin, fats, rosin, lubricants, Vaseline, medical ointments, suppositories, and edible grease. The system uses HD video-based detection to monitor two samples simultaneously, recording the full measurement process for later playback and data review.
Key Features
• Dual-sample HD video detection — observes and records two samples at the same time for efficient, side-by-side testing.
• Automated process recording — captures the entire measurement in video, with built-in playback and data-recall functions for traceability and review.
• Standards compliance — meets ASTM D3461, ASTM D3104, ASTM D3954, and ASTM D6090.
• Touch-screen interface — intuitive, user-friendly operation suited for routine lab use.
Technical Parameters
| Parameter | Specification |
| Parameters/Model | TS-MPA1-400 / TS-MPA1-360 / TS-MPA1-300 |
| Measuring range | Room temperature-400℃ / Room temperature-360℃ / Room temperature-300℃ |
| Measuring modes | Auto / Visual |
| Number of sample | 2 |
| Measuring methods | 600 / 400 / 200 |
| Number of Users | 200 / 150 / / |
| Audit trail | Optional / Optional / / |
| Resolution | 0.1℃ |
| Linear heating rate | 0.1℃ / min~20℃ / min |
| System | Android |
| Data storage | 128G / 64G / 64G |
| Display | 10.1 inch touch screen, 720P HD camera |
| Interface | 1 x RS232, 3 x USB, 1 x RJ-45 / 1 x RS232, 3 x USB |
| Power Supply | 100-240V, 50/60Hz, 150w |
| Package Dimensions | 490mm×490mm×345mm |
| Weight (Gross) | 8 kg |
Applications
• Thermal characterization of tar and asphalt materials using dropping-point and softening-point measurements.
• Dropping-point and softening-point testing of paraffin, resin, fats, rosin, lubricants, and Vaseline.
• Thermal characterization of medical ointments and suppositories.
• Thermal testing of edible grease and related materials in laboratory quality-control applications.
