FTIR Spectrometer
Fourier Transform Infrared Spectrometer
1 / 4FTIR Spectrometer

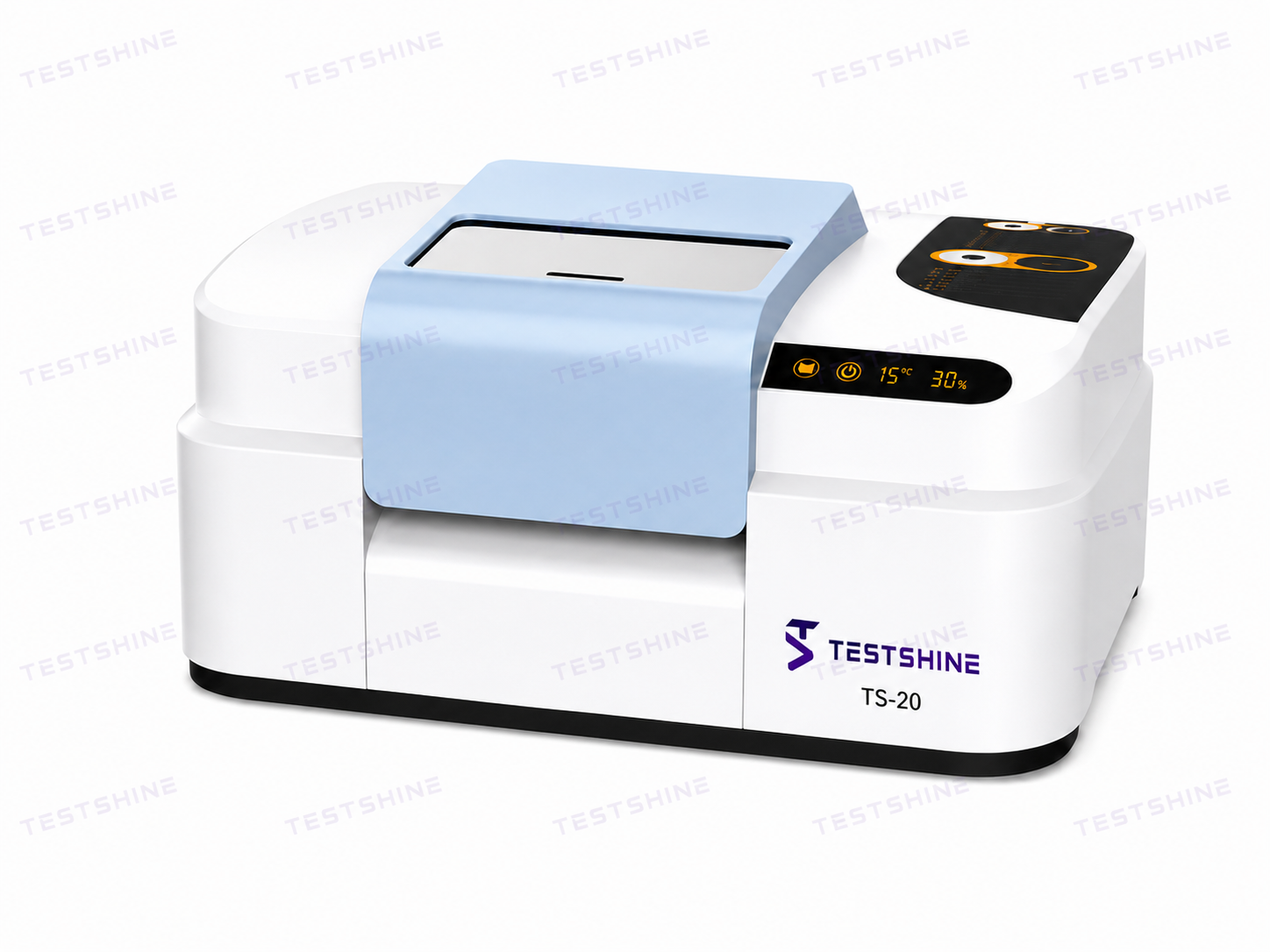

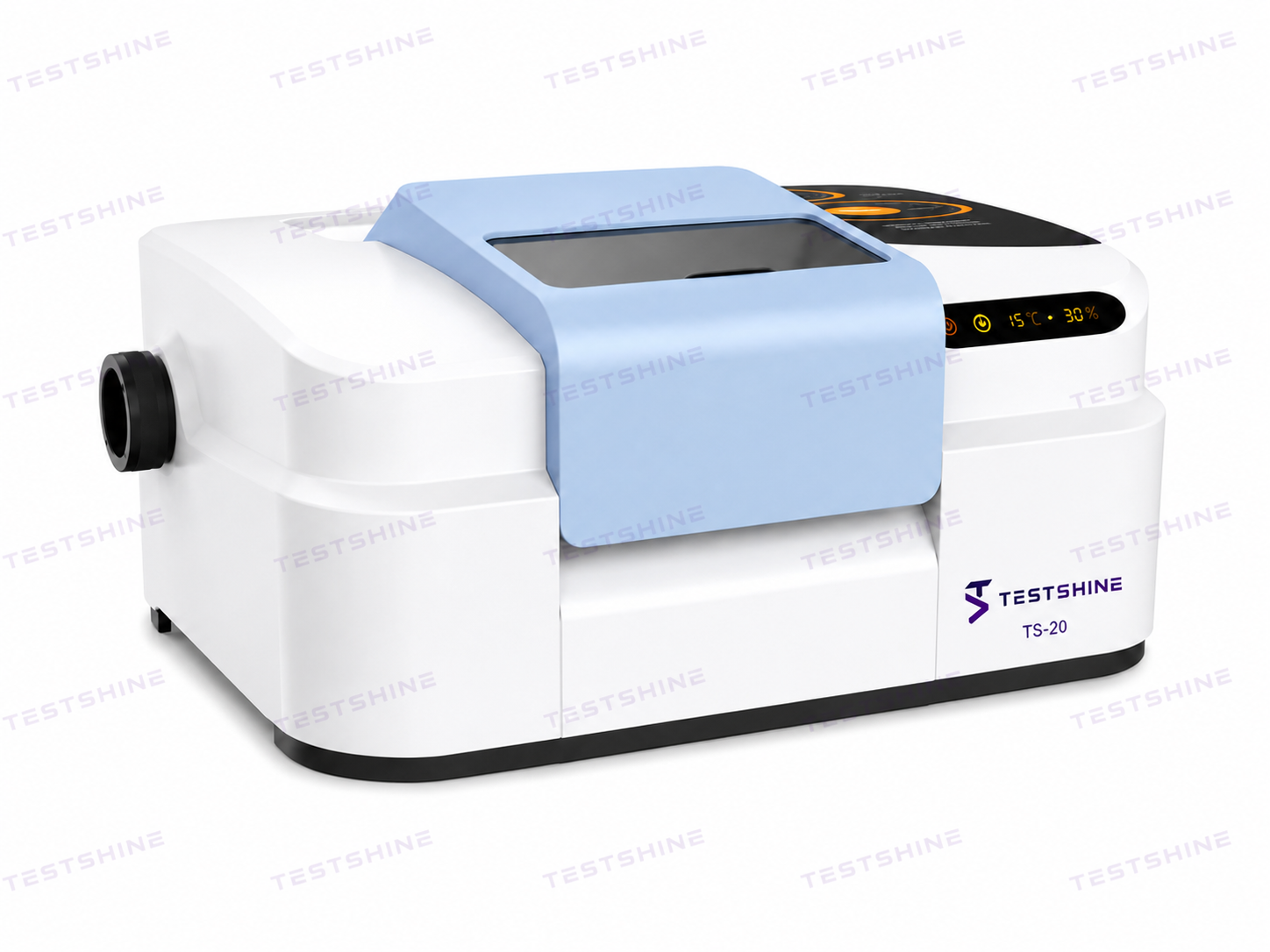

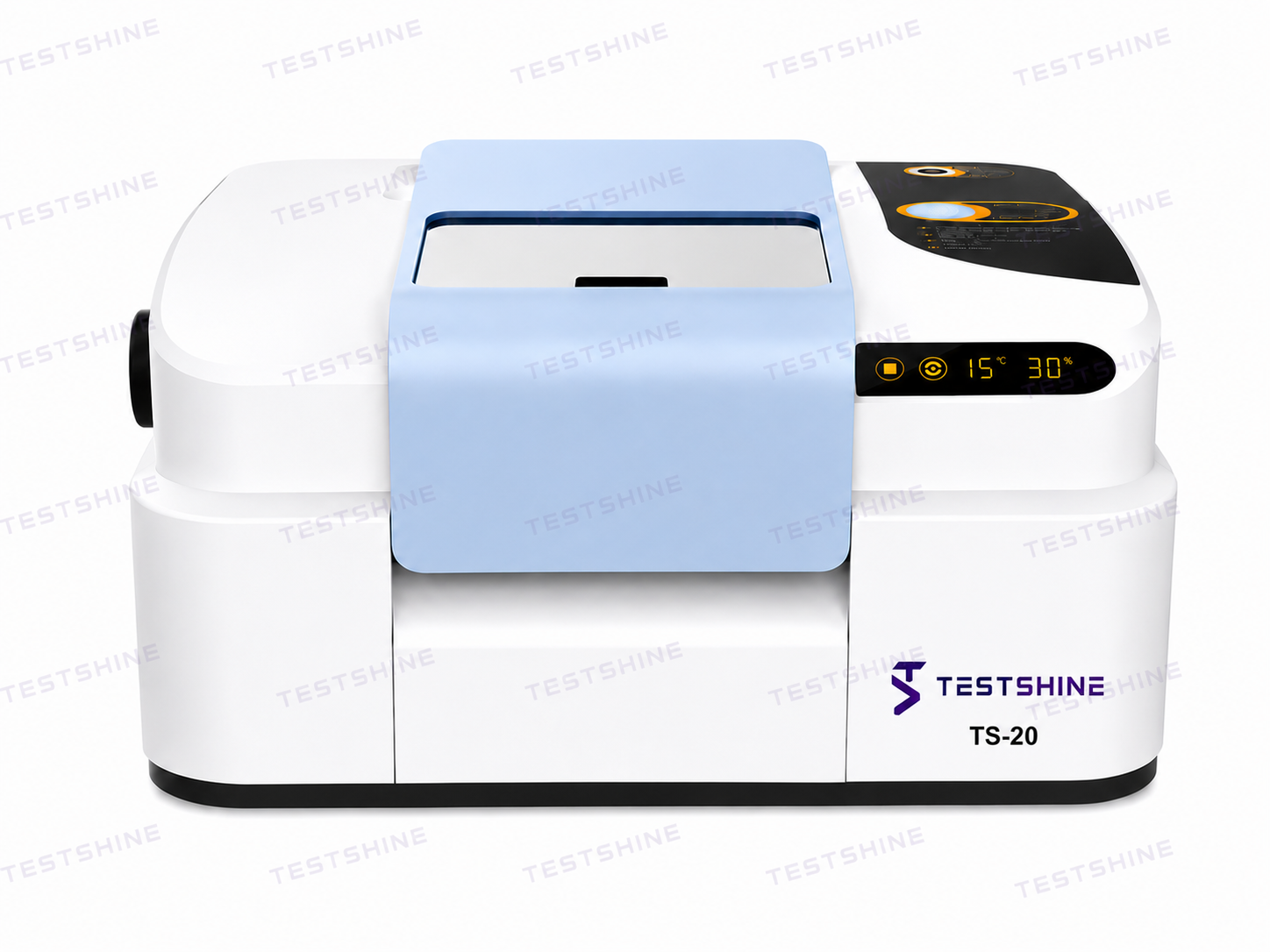

The TS20 FTIR Spectrometer combines advanced Fourier Transform Infrared technology with a compact, low-maintenance design to deliver accurate and consistent analytical performance.
Key Specifications
Spectral Range
7800–350 cm⁻¹
Resolution
< 1.0 cm⁻¹
Signal-to-Noise
30,000:1
Wavenumber Accuracy
< 0.01 cm⁻¹
Global Shipping
50+ countries
2-Year Warranty
Parts & service
Expert Support
Dedicated team
Have a question about this instrument?
Talk to an expertProduct Introduction
The TS20 FTIR Spectrometer is a high-precision analytical instrument engineered to deliver fast, accurate, and reliable infrared spectral analysis for a broad range of laboratory and industrial applications. Utilizing advanced Fourier Transform Infrared (FTIR) technology, the system enables rapid identification and characterization of organic, inorganic, and polymeric materials with exceptional spectral accuracy and repeatability.
Designed with ease of use in mind, the TS20 FTIR Spectrometer features an intuitive operating interface, simplified installation, and a low-maintenance design, making it suitable for both experienced analysts and first-time users. Its robust optical system and stable performance ensure consistent analytical results, supporting routine quality control, research, product development, and failure analysis.
The TS20 FTIR Spectrometer is an ideal solution for laboratories in the pharmaceutical, chemical, petrochemical, polymer, plastics, food, environmental, and biomedical industries. It is equally valuable for universities, research institutions, and testing laboratories where dependable infrared spectroscopy is essential for scientific research, education, and quality assurance.
Technical Parameters
| Instrument Type | FTIR Spectrometer (TS20) |
| Spectral Range | 7800–350 cm⁻¹ |
| Resolution | Better than 1.0 cm⁻¹ |
| Signal-to-Noise Ratio | 30,000:1 (P-P value, 4 cm⁻¹, 1 min scan) |
| Wave Number Accuracy | Better than 0.01 cm⁻¹ |
| Transmission Accuracy | Better than 0.05 τ% |
| Interferometer | Non-orthogonal Michelson Interferometer |
| Data Transmission Interface | High-Speed USB 2.0 (Compatible with USB 3.0) |
| Power Supply | 100–240 V, 50/60 Hz Broadband Power Supply |
| Compatible Operating System | Windows XP, Windows Vista, Windows 7, Windows 8, Windows 10, Windows 11 |
| Sample Bin Size | 190 × 160 mm |
| Instrument Size | 450 × 350 × 210 mm |
| Net Weight | 14 kg |
Applications
The TS20 FTIR Spectrometer is a versatile analytical instrument designed for both qualitative and quantitative infrared analysis across a wide range of industries. By providing rapid material identification, chemical composition analysis, contaminant detection, and concentration measurement, it supports quality control, research, product development, regulatory compliance, and failure investigation. The instrument is widely used in pharmaceutical laboratories, polymer and plastics manufacturing, petrochemical industries, food safety testing, environmental monitoring, forensic science, academic research, and industrial quality assurance.
Qualitative Analysis
Qualitative analysis is commonly used for the overall identification of a substance. For specimens that can be predicted in advance, the sample can be compared directly against a standard IR spectrum for identification and confirmation. Specimens that cannot be foreseen in advance can be identified by searching an infrared spectrum library; approximately 220,000 Sadtler spectra are available through the manufacturer.
- Identification of textile fibers
- Drug GMP certification testing
- Testing of food and drug packaging materials
- Testing the application scheme of brake shoe body material
- Screening of organotins in electrical and electronic products
- Analysis of trace physical evidence and inspection of paint physical evidence
- Testing of polymer materials such as plastics, rubber, adhesives, asphalt, and resins
Quantitative Analysis
Quantitative analysis is based on Lambert-Beer quantification. A relationship curve is established between content and the absorbance or peak area of the infrared characteristic peak, after which unknown sample content can be tested.
- Benzene content in gasoline
- Emissivity measurement of building glass hemispheres
- SBS content determination in modified asphalt
- Free silica content determination in dust
- Fatty acid methyl ester (FAME) content determination
- Ethylene content determination in polypropylene and polyethylene
- Identification and determination of typical unconventional additives in motor gasoline
- Vinyl acetate content determination in ethylene-vinyl acetate copolymer (E-VAC)
Further Quantitative Applications
- Nitrile rubber content determination
- Interstitial oxygen content determination in silicon crystals
- Substitutional carbon atom content determination in silicon
- Total recoverable petroleum hydrocarbons determination in solid waste
- Determination of water quality, petroleum, and animal and vegetable oils
- Rapid determination of benzene content in gasoline by mid-infrared spectroscopic absorption method
- Hydroxyl content determination in quartz
- Formacetal content determination in automotive gasoline
- Application in adhesive curing rate testing
- Determination of alcohol ester hydroxyl value/saponification value content in cold-rolled oil
- T501 antioxidant content determination in transformer oil and steam turbine oil
- Determination of carbon structure and structural cluster composition of mineral insulating oil and lubricating oil
