Differential Scanning Calorimeter
Differential Scanning Calorimeter
1 / 4Differential Scanning Calorimeter

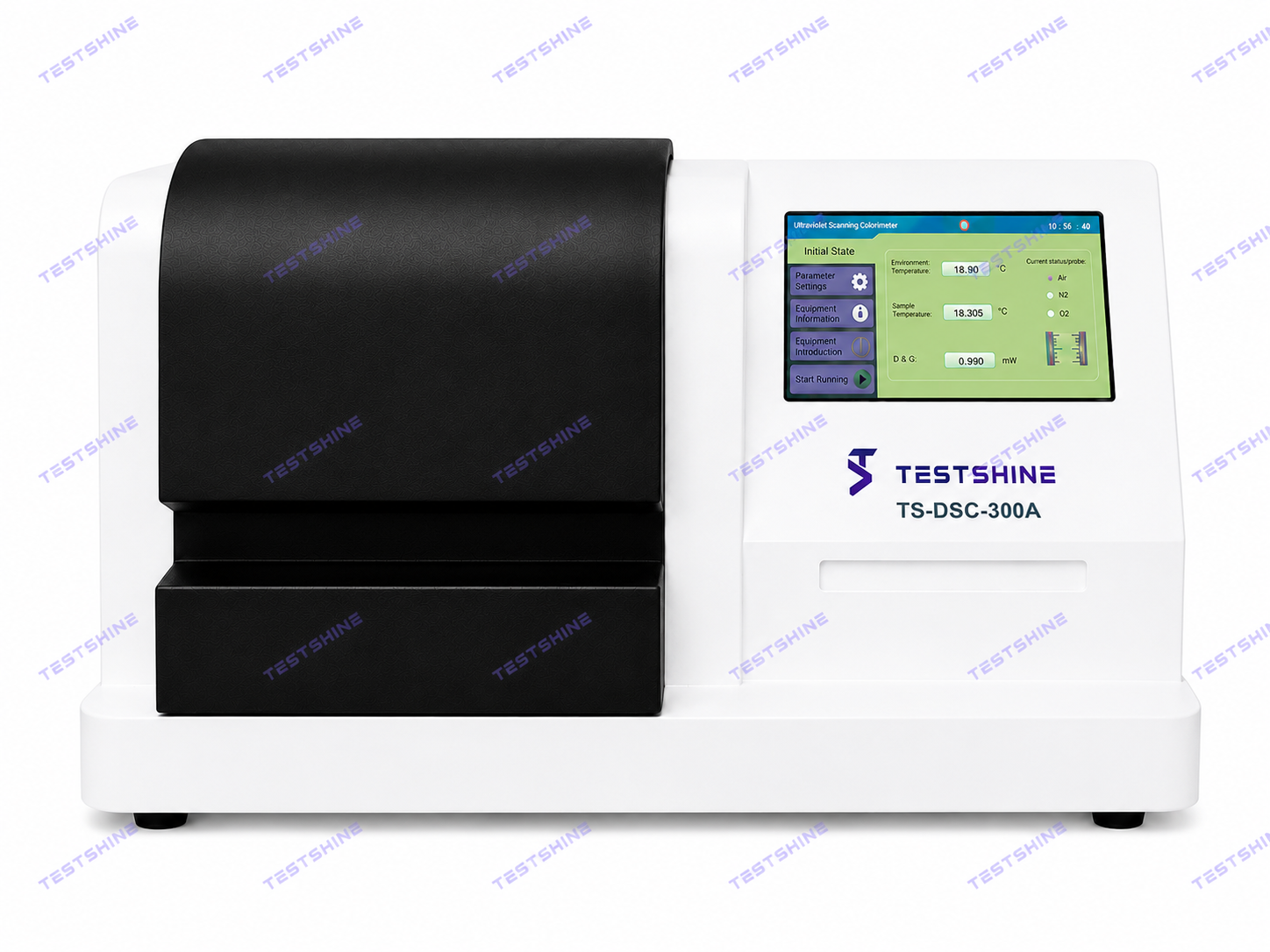

The TS-DSC-300A Differential Scanning Calorimeter delivers ultra-high precision thermal analysis with exceptional sensitivity and stability, enabling accurate characterization of material transitions, thermal properties, and product performance across research and industrial applications.
Key Specifications
Temperature Range
0–600°C
Heating Rate
0.1–100°C/min
DSC Sensitivity
0.001 mW
Gas Control
Auto N₂/O₂ Switching
Global Shipping
50+ countries
2-Year Warranty
Parts & service
Expert Support
Dedicated team
Have a question about this instrument?
Talk to an expertProduct Introduction
TS-DSC300A is the one with the highest precision of DSC series products launched by the company. The sensor is the imported material E couple, with high accuracy, high sensitivity, good repeatability, signal acquisition circuit with shielding protection, strong anti-interference, high baseline stability and repeatability.
TS-DSC300A Differential Scanning Calorimeter can be tested for glass transition temperature, phase transition temperature, melting point, thermal enthalpy value, curing temperature and product stability, oxidation induction period, etc. It is competent for the research of pipe, polymer, chemical, food, medical and many other fields, products and service universities, enterprises, third party measurement and quality inspection and other units. The application range is very wide, to meet the testing needs of various industries.
Key Features
- Imported E-Couple Sensor provides high accuracy, high sensitivity, and excellent repeatability for precise thermal analysis.
- Advanced Anti-Interference Design with shielding protection ensures outstanding baseline stability and reliable measurement performance.
- High-Performance Thermal Analysis supports glass transition temperature, phase transition, melting point, thermal enthalpy, curing temperature, oxidation induction period, and product stability testing.

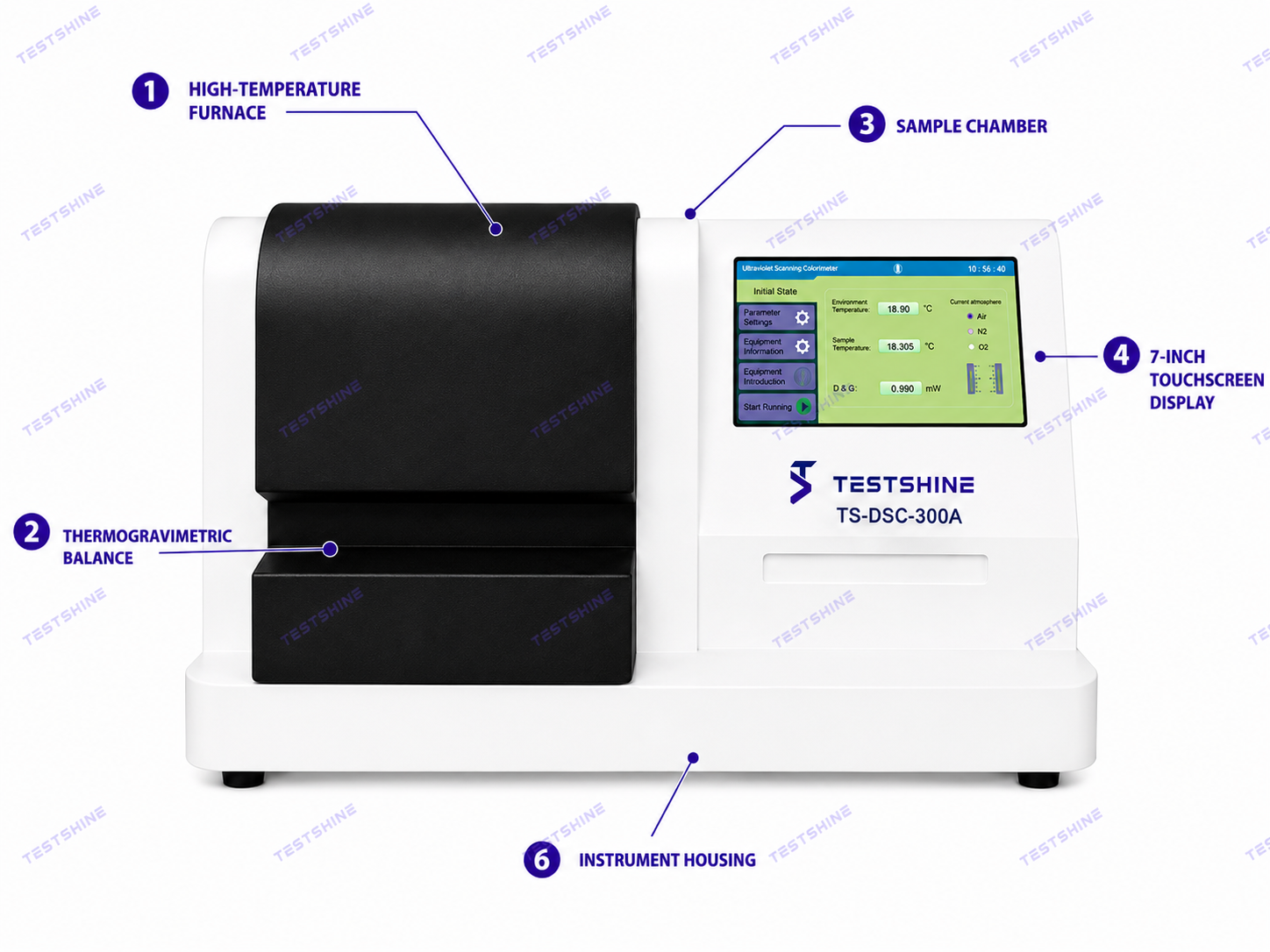

- Intelligent 7-Inch Touchscreen System with automatic program control for heating, constant temperature, cooling, and atmosphere switching for convenient operation.
Technical Parameters
| Temperature Range | 0 to 600℃ |
| Temperature Resolution | 0.001℃ |
| Temperature Fluctuation | ±0.01℃ |
| Temperature Repeatability | ±0.1℃ |
| Heating Rate | 0.1 ~ 100℃/min |
| Constant Temperature Time | Program setting up to 24h |
| Temperature Control Mode | Heating up, constant temperature, cooling (automatic program control) |
| DSC Range | 0 to ±800mW |
| DSC Resolution | 0.01uW |
| DSC Sensitivity | 0.001mW |
| Working Power Supply | AC220V / 50Hz or customized |
| Atmosphere Control Gas | Nitrogen, Oxygen (program setup / automatic switching) |
| Gas Flow Rate | 0–200mL/min |
| Gas Pressure | ≤0.5MPa |
| Display Mode | 24bit color, 7-inch LCD touch screen display |
| Data Interface | Standard USB interface |
| Parameter Standard | Equipped with standard material (indium, tin), the user can correct the temperature |
| Temperature Monitoring | Multiple thermocouples: sample temperature, furnace body temperature, and internal environmental temperature |
| Cooling Device | Semiconductor cooling device (optional), optional liquid nitrogen refrigeration <-150~550℃>, <-40~550℃> |
Applications
Polymer & Plastics
Evaluate glass transition temperature, melting point, phase transitions, oxidation induction period, and product stability for polymer materials and plastic products.
Chemical & Pharmaceutical
Support thermal characterization, curing analysis, stability evaluation, and material research for chemicals and pharmaceutical products.
Food, Universities & Testing Laboratories
Widely used in food research, universities, enterprises, third-party measurement laboratories, and quality inspection organizations for reliable thermal analysis and quality control.
