Product Introduction

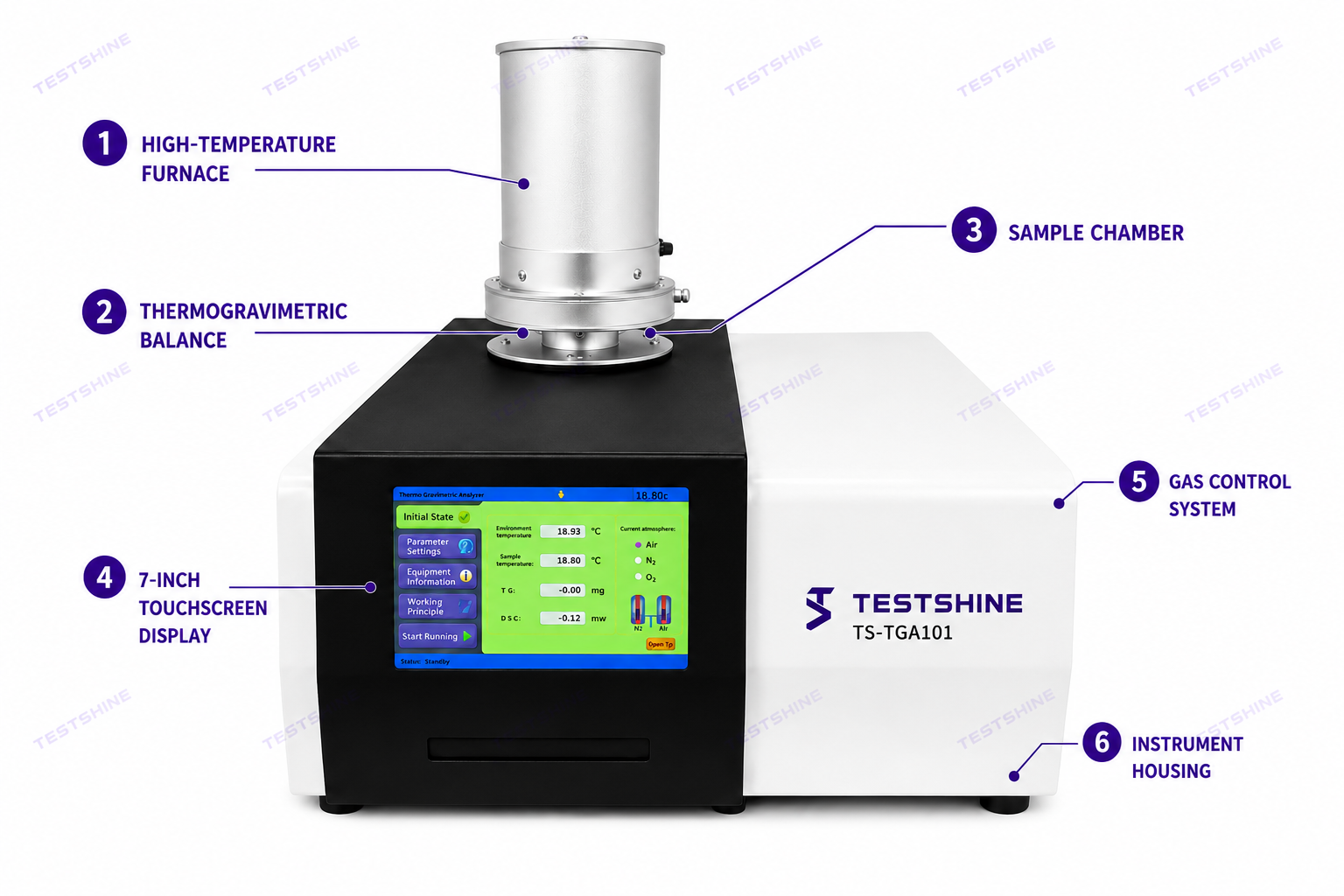

TS-TGA-101 is a high-performance Thermo Gravimetric Analyzer (TGA) designed for precise measurement of mass changes in materials as a function of temperature and time. By continuously monitoring sample weight during controlled heating, isothermal, or cooling cycles, the instrument provides critical insights into the thermal stability, composition, and reaction kinetics of a wide range of materials.

Thermogravimetric analysis is one of the most fundamental and widely adopted techniques in thermal analysis. The TS-TGA-101 brings this capability to research laboratories, quality control departments, and industrial process environments through a combination of superior hardware design, advanced electronics, and intuitive software control. It is engineered to deliver reproducible, accurate, and high-resolution data for both routine quality monitoring and complex investigative studies.

This instrument is capable of detecting mass variations as small as 0.01 mg across a temperature range from ambient conditions up to 1,250°C, making it suitable for the full spectrum of inorganic, organic, polymeric, and composite material investigations.

Key Features

• High-Precision Thermogravimetric Analysis capable of detecting mass variations as small as 0.01 mg for accurate thermal characterization.
• Wide Temperature Range from Room Temperature to 1,250°C, enabling comprehensive analysis of organic, inorganic, polymeric, and composite materials.
• Advanced PID Temperature Control with programmable heating and constant-temperature operation for stable and reproducible testing.
• Versatile Research & Quality Control Solution designed for laboratories, industrial process monitoring, material development, and routine quality assurance.

Technical Parameters

Applications

Polymer & Plastics Industry

Thermogravimetric analysis is an indispensable tool for polymer scientists. The TS-TGA-101 enables precise evaluation of thermal degradation profiles, decomposition onset temperatures, and residue content in thermoplastics, thermosets, and elastomers. It supports formulation development, additive quantification, and compliance testing to national and international standards.

Rubber & Elastomers

In rubber compounding and vulcanization processes, the TS-TGA-101 enables the determination of raw rubber content, filler levels, plasticizer concentrations, and sulfur components. It supports the measurement of volatile loss, decomposition stages, and oxidative stability critical to product performance and shelf-life assessment.

Coatings & Surface Treatments

For paint, varnish, lacquer, and industrial coating manufacturers, the analyzer provides data on solvent evaporation, binder decomposition, pigment stability, and inorganic filler content. The instrument supports formulation optimization and ensures batch-to-batch consistency in coating materials.

Pharmaceutical & Drug Development

In pharmaceutical research, TGA is used to characterize moisture content, dehydration behavior, decomposition profiles, and thermal stability of active pharmaceutical ingredients (APIs) and excipients. The TS-TGA-101 supports polymorph studies, shelf-life prediction, and compatibility testing essential to drug development and regulatory submissions.
